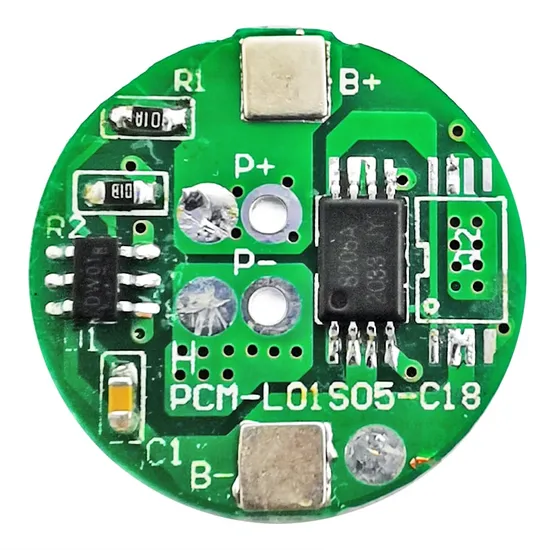

1s 2.5A Round BMS for 3.6V 3.7V Li-ion/Lithium/Li-Polymer 3V 3.2V LiFePO4 Battery Pack Size Φ 18mm (PCM-L01S05-C18)
| US$0.30-0.40 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
PCM-L01S05-C18
Layers
Multilayer
Base Material
FR-4
Certification
RoHS, CCC, ISO
Customized
Non-Customized
Condition
New
Specified Types
1s Li-ion/Li-Polymer/LiFePO4 Battery
L-Ion/Li-Polymer Charging Voltage
4.2V
LiFePO4 Charging Voltage
3.6V
Max. Continuous Charging Current
2.5A(Max)
Maximal Continuous Discharging Current
2.5A(Max)
Discharge Overcurrent Protection
4±1A(Adjustable)
Colour of PCM
Green
Balance
No
Warranty
12 Months
Transport Package
Antistatic Bag /White Box and Standard Export Cart
Specification
Φ 18mm
Trademark
QUAWIN/OEM
Origin
China Guangdong
HS Code
8507909000
Production Capacity
5000000/Month
Product Description
Technical parameterProduct name:Protection Circuit Module
Model No:PCM-L01S05-C18
For 1S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 1 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 2.5a, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. Protection IC with Fortune DW01-P;
| Items | Specifications | ||
| Lithium-ion/Lithium Polymer | LiFePO4 | ||
| Charge | Charging voltage(CC/CV)-1S | CC/CV:4.2V | CC/CV:3.6V |
| Maximal continuous charging current | 2.5a(Max) | ||
| Discharge | Maximal continuous discharging current | 2.5a(Max) | |
| Low current consumption | Current consumption on operation | <10μA | |
| Current consumption at power down | <0.1μA | ||
| Cell-balance | Cell-balance detection voltage | / | / |
| Cell-balance release voltage | / | / | |
| Cell-balance current | / | / | |
| Over-charge | Overcharge detection voltage | 4.25±0.025V | 3.900 ± 0.025V |
| Overcharge release voltage | 4.15±0.05V | 3.800 ± 0.050V | |
| Overcharge delay time | 0.5~2S | ||
| Over-discharge | Overdischarge detection voltage | 2.50±0.062V | 2.00±0.080V |
| Overdischarge release voltage | 3.0±0.075V | 2.30±0.100V | |
| Overdischarge delay time | 40~100mS | ||
| Discharge overcurrent | Discharge overcurrent detection voltage | 0.2±0.015V | 0.10±0.015V |
| Discharge overcurrent delay time | 10~20ms | ||
| Discharge overcurrent protection | 4±1a(adjustable) | ||
| Release condition | Cut-off-load | ||
| Short-circuiting protection | Load short-circuiting detection voltage | / | / |
| Detection condition | Exterior short circuit | ||
| Load short-circuiting detection delay time | 100~500μs | ||
| Release condition | Cut-off-load | ||
| Internal resistance | Static Drain-Source On-Resistance | <60mΩ(B- to P-) | |
| Temperature | Wide range of operation temperature | 40 ~ + 85ºC | |
| Storage Temperature Range | -40 ~ +125ºC | ||
| Dimension | Φ18mm | ||
