NBR 12018035b 150*180*14.5/16 Rwdr-Kassette Oil Seal for Wheel Hub (87349641)

Product Description

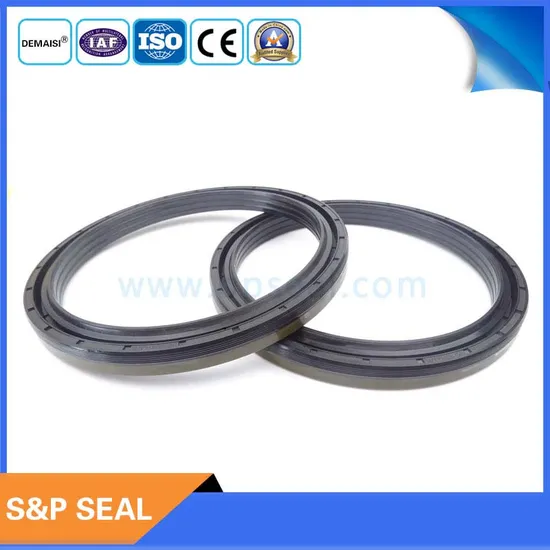

NBR 12018035B RWDR-KASSETTE OIL SEAL FOR WHEEL HUB

VOLVO	11988156
CAT	1570739
Hidromek	S06+40272
John Deere	R191375
TEREX	6110604M91
KOMATSU	CA047702

Cassette oil seal/Labyrinth oil seal The cassette seals are generally made up of a sleeve, sealing lip with a spring and several anti-dust lips integrated into a labyrinth system to protect against external pollution, and are distinguished by greater system reliability and longevity. Furthermore, their friction surface, which has been adjusted and finished beforehand, does not require any shaft maintenance during replacement.
a.Metal/rubber outside diameter
The cassette seal's outside diameter design provides better static sealing against low-or high-viscosity fluids, limited bounce-back effect, accurate positioning and a solid foundation for the seal in its housing, as well as better heat dispersion.
b.Pre-lubricated areas
Depending on the application, a compatible lubricant is applied to different areas inside the cassette seal, whichenables better heat dispersion, lubricates addtional sealing lips during friction and prevents the entry of external pollutants.
c.Rubber bumpers
Rubber bumpers correctly position the sleeve with the primary sealing lip. They also ensure an appropriate level of restriction or interference using various additional barriers, and reduce the entry of external pollutants into the system.
d.Primary sealing lip
The primary sealing lip is pre-stressed by a spring, which guarantees optimal sealing against media when in rotation, whilst compensating for potential shaft run-out and eccentricity faulis. The sealing lip's optimised geometries ensure reduced friction and longer product lifespan.
e.Metal/rubber inside diameter
The cassette seal's inside diameter interior is designed to offer better static sealing against low-or high-viscosity fluids, and reduce installation effort during assembly.
f.Curved metal part
The curved metal cage on the outside of the cassette seal allows for easy assembly and disassembly, and prevents the seal from coming apart during transport or maintenance operations.
g.Conactless barrier
The rubber baffle is a contactless barrier that limits the entry of external pollutants.
h.Additional anti-pollution sealing lips
Additional sealing lips can be radial or axial, depending on the cassette seal profiles and additional barriers against external pollutants.
i.Ground metal cage
The metal part of the cage that is in contact with the sealing lip(s) is ground in order to improve surface toughness, reduce friction and increase the seal's lifespan.
150-180-14.5/16
PRODUCT PCAKING
Product list

NO.	SIZE		NO.	SIZE
BPH001	25*52*12		BPH023	127*160*15.5/17.5
BPH002	25*52*11.5/18		BPH024	130*160*14.5/16
BPH003	35*60*13/14.5		BPH025	136.8*165*13
BPH004	35*62*13.5/14		BPH026	140*170*14.5/16
BPH005	35*65*14.5/17		BPH027	142*170*13.5/16
BPH006	35*92/98*13/27		BPH028	142*170*15/16
BPH007	37*85*15/15.5		BPH029	145*175*14.5/15.5
BPH008	45*70*14/17		BPH030	148*170*14
BPH009	48*75*14/17		BPH031	150*180*14.5/16
BPH010	53.2*78*13/14		BPH032	150.15*178*13/16
BPH011	55*80*12.5/14		BPH033	155*190*17.5/19
BPH012	56*80*13/14.5		BPH034	155*195*16.5/18
BPH013	60*90*14/16.3		BPH035	165*190*15.5/16.5
BPH014	65*90*13/14.5		BPH036	165*195*16.5/18
BPH015	70*95*13/14.5		BPH037	167.8*198*13/14.5
BPH016	75*100*13/14.5		BPH038	170*200*15/16
BPH017	85*110*13/14.5		BPH039	178*208*16/18
BPH018	110*140*14.5/16		BPH040	189.8*230*15.5/17
BPH019	111*146*13.5/14.5		BPH041	190*220*16/18
BPH020	120*150*14/15.5		BPH042	210*240*16/18
BPH021	120*160*15.5/17		BPH043	220*265*19/21
BPH022	121.8*150*13/15		BPH044	235*270*18.5/22
