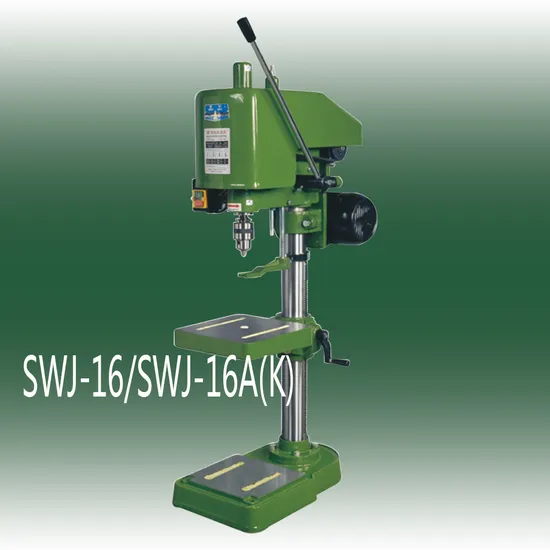

Swj-16K High Speed Vertical Tapping Machine Metal Heavy Duty Cast Iron Steel Tapper Machine M16 M12
| US$821.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWJ-16K
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
750W
Max Drilling Capacity
16 mm
Transport Package
Wooden Case
Specification
79x46x134cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | SWJ-6/SWJ-12 | SWJ-6B/SWJ-10 | SWJ-6A/SWJ-12A |
| Max.tapping capacity(Cast iron/Steel) | M6/M5,M12/M8 | M8/M6,M12/M10 | M6/M5,M12/M8 |
| Distance spindle axis to column surface | 127mm | 140mm | 127mm |
| Max.distance spindle nose to worktable | 261/250mm | 300/265mm | 231/220mm |
| Spindle/Worktable travel | 40/45mm | 50mm | 40/45mm |
| Spindle taper | B12/B16 | B12/B16 | B12/B16 |
| Spindle speeds range | forward:480.850rpm/260-750rpm | forward:350-1310rpm/250-800rpm | forward:480.850rpm/260-750rpm |
| reverse:580,1050rpm/320-930rpm | reverse:480-1790rpm/340-1100rpm | reverse:580.1050rpm/320-930rpm | |
| Dimension of worktable surface | 196x196mm/230x230mm | 200x200mm | 230mm/245mm |
| Overall height | 815/825mm | 767mm | 815/825mm |
| Motor | 370W | 370/550W | 370W |
| G.W./N.W. | 63/43kg,72/48kg | 73/60kg | 63/43kg,72/48kg |
| Ship measurement | 61x44x93cm | 60x40x72cm | 61x44x93cm |
| Model | SWJ-16B | SWJ-16/SWJ-16A(K) | SWJ-20 |
| Max.tapping capacity(Castings/steel parts) | M16/M12 | M16/M12 | M20/M16 |
| Diameter of column | 70mm | 73mm | 73mm |
| Spindle speeds range | forward:240,380,570r/min | forward:240-570rpm | forward:160,250,380rpm |
| reverse:275,440,650r/min | reverse:275-650rpm | reverse:170,280,420rpm | |
| Max.distance spindle nose to worktable | 492/450mm | 400mm | |
| Max.distance spindle nose to base | 500mm | 676mm | 676mm |
| Distance spindle axis to column surface | 184.5mm | 183mm | 183mm |
| Spindle taper | B18 | B18 | B18 |
| Spindle travel | 50mm | 50mm | 50mm |
| Head stock vertical travel | 395mm | 300mm | |
| Dimension of worktable surface | 270x280mm/320mm | 300x310mm | |
| Dimension of base worktable surface | 250x300mm | 254x237mm | 270x280mm |
| Overall height | 1030mm | 1230mm | 1235mm |
| Motor | 750W | 750W | 1100W,910rpm |
| G.W./N.W. | 118/90kg | 120/102kg | 199/161kg |
| Ship measurement | 83x49x87cm | 79x46x134cm | 85x60x128cm |
