Agricultural Middle-Duty Disc Harrow (Medium Mounted Disc Harrow)
| US$600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BJX-1.7/2.0/2.2/2.4/2.5
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Disc Harrow
Arbor Configuration
No
Certification
CE
Color
Blue
Warranty
One Year
Price
Best
Colour
Many
Quality
Best
Transport Package
Iron Frame
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432809000
Production Capacity
5000sets/Year
Product Description

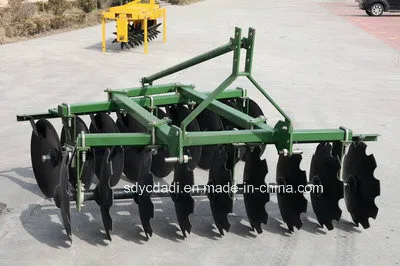

Middle-duty Off-set Disc HarrowThe 1BJX series Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing. On cultivated land, the machines can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
Details of the 1BJX series Middle-duty Disc Harrow: The disc blades of front disc gang are the notched disc and the disc blades of rear disc gang are the smooth discs. They are made of 65Mn steel plate and having been heat treated, they are sturdy and durable. The bearings of the medium harrow are sealed spherical rolling within bearing house.It has small resistance and short maintenance time. The scrapers of the harrow are used to clean up clods sticking to the disc and prevent blocking up.
| Model | 1BJ-4.0 | 1BJ-4.4 | 1BJ-4.8 | 1BJ-5.3 | 1BJ-6.2 | |
| Working width(M) | 4.0 | 4.4 | 4.8 | 5.3 | 6.2 | |
| Working depth(Cm) | 14-18 | |||||
| Dia. Of Disc(Mm) | 560*4 | |||||
| Disc space(Mm) | 230 | |||||
| Qty. of Disc | 36 | 40 | 44 | 48 | 56 | |
| Productivity(Ha/h) | 2.5 | 2.7 | 2.9 | 3.25 | 3.8 | |
| Overall size(Mm) | 522*420*113 | 540*460*113 | 540*460*113 | 552*552*113 | 565*640*113 | |
| Weight(Kg) | 1560 | 1750 | 1950 | 2150 | 2600 | |
| Linkage | Trailed | |||||
| Matched power(Hp) | 75-100 | 80-120 | 90-150 | 100-150 | 150-180 | |
