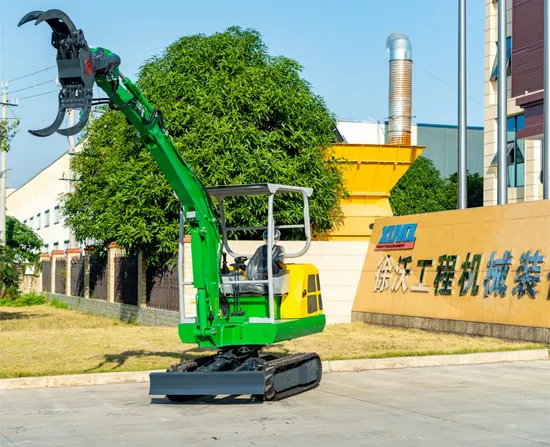

Mini Hydraulic Excavator Xuvol Excavator Suitable for Harvest Sugercane

Product Description

Machine Weight	1580kg
Machine Length (Transport status)	3277mm
Machine Width	986mm
Machine Height	2200mm
Crawler Length	1435mm
Crawler Width	230mm
Bucket Width (With/Without side teeth)	425/380mm
Bucket Capacity	0.04cbm
Bulldozer Width	980mm
Working Performance
Platform height from the ground	446mm
Radius of gyration at the end of the platform	727mm
Canopy height	1400mm
Height of chassis from ground	184mm
Chassis width	980mm
Upper body width	850mm
Maximum digging radius	3720mm
Maximum stop surface digging distance	3660mm
Maximum digging depth	2030mm
Maximum vertical digging depth	1788mm
Minimum radius of gyration	1510mm
Maximum lifting height of bulldozing	242mm
Maximum digging depth for bulldozing	145mm
Operation System
Engine Model	Yanma 3TNV70-SSY
Rated Output	14ps/10.3kw
Max Rotating Speed	2200rpm
Crawler Type	Steel/Rubber
Walking Speed	2.0km/h
Slewing Speed	11rpm
Climbing Ability	30° (58%)
Type of Main Pump	Gear Pump*3
Main pressure	16 Mpa
Capacity of hydraulic tank	15L
Capacity of Fuel Tank	16L

Guangxi Xuvol Construction Machinery Equipment Co., Ltd. was established in 2014. On the base of Guangxi Nanning Woyuan Heavy Industry Machinery Equipment Co., Ltd., Xuvol is one of the biggest multi-functional excavator attachments manufacturer in China. Products include OEM grapples, mini excavator, timber harvester head etc. Our R&D Center and production line is located at No. 16, Anping Road, Guangxi-ASEAN Economic and Technological Development Zone, Total construction area is 15767m² including office building and specialized standard factory buildings. Xuvol is a key enterprise in the Guangxi-ASEAN Economic and Technological Development Zone, a national "high-tech enterprise", and also one of the top 100 China construction machinery parts brands. It has accumulated 3 invention patents , 5 appearance patents and 16 utility model patents. Xuvol has an experienced R&D and production team, using PLE, SLW and three-dimensional design and finite element mechanical to analysis, With CNC boring machine, vertical machining center, gantry machining center, plasma CNC cutting machine, laser cutting machine, three coordinates measuring instruments, welding robots, and environmentally-friendly painting lines, with the above advanced production and processing equipment, to guarantee the quality of products. Xuvol specializes in R&D and production of log grapples, mini excavators of 3.5 tons. At the same time, it develops and produces Woyuan series of excavator fixtures, digging and modifying rock drills, drilling and splitting integrated machines, mobile crushers, hand saws, logging machines and other construction machinery, Complete machines and attachments of forestry machinery and mining machinery. Xuvol offer OEM and ODM service. Our R&D team ensure to make your idea turn into reality. We firmly believe that quality comes from the trust of customers, and only by innovation. We can do the best in quality and integrity.
