Bottom Price High Precision Nc System Gear Hobbing Machine Max Dia 320mm Max Length 210mm Workpiece, 2-4 Module (MLT-YK3132-E)

Product Description

Efficient YK3132 Direct drive high speed CNC gear hobbing machine Max Dia 320mm Max length 210mm workpiece, 2-4 module range

The same quality, lowest price; same price, best quality.

Processing Object:
spur gear, helical gear , worm gear and spline
Technical description

MLT-YK3132 CNC high speed gear hobbing machine is an excellent domestic vertical gear hobbing machine. Carefully developed by MLT and with fully independent core technology.

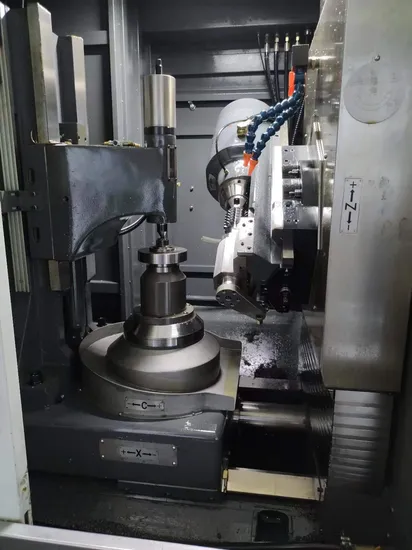

Remark: Picture shown as 4 axis machine
The machine tool is equipped with MLT gear hobbing special control system, the original core gear processing algorithm software (non-secondary development macro program calculation). The technical advantages is multi-axis NC servo drive, which B,C axis adopts high precision and large torque servo direct drive motor (DD servo motor). With high speed, high precision and high torque, MLT-YK3132 has excellent dynamic response performance. Equipped with workpiece hydraulic clamping cylinder, tail seat hydraulic lifting function, compared with other similar equipment, MLT-YK3132 has the characteristics of high machining accuracy, high machining efficiency and good accuracy retention.
This machine tool is a 4-axis / 5-axis CNC high-speed gear hobbing machine working according to the expansion method, with three CNC linear axes: radial feed axis (X-axis); Axial feed axis (Z axis); Tangential movement axis (Y axis, 4 axis /5 axis is available). Two CNC rotation axes; Table rotation shaft (C-axis); Hob spindle rotation shaft (B axis);

Service item:
1. Machine warranty period: 12 months once the customer receives machine, after 12 months, we may answer the customer's question on line or by e-mail within 24 hours
2. Mltor will prepare one more set of quick-wear components with the machine for the customer
3. Mltor will not provide or change any part or component for free if the customer damages them abnormally, customer needs to purchase them separately
4. Mltor will afford the customer's technician local transportation, accommodation and catering cost when the customer's technician comes to Mltor factory to have a train or inspects the machine before the machine delivery and the customer will afford their technician travelling cost
5. In the warranty period, if the customer requests Mltor engineer to support in foreign country, Mltor will supports to check equipment and train the customer technician for free but the customer needs to afford Mltor's engineer travelling expenses, local transportation and accommodation and catering cost
