Cheap Hydraulic Metal Automatic Drilling Press Z3040X14-III Quality Radial Drilling Machine

Product Description

Product Description
Cheap Hydraulic Metal Automatic Drilling Press Z3040X14-III Quality Radial Drilling Machine
we are the most professional in making radial drilling machine
Product Parameters
Features:With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etcStandard accessories:Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield

Main technical parameters	SPECIFICATIONS	Z3040X14/III
	Max.drilling dia(mm)	40
	Distance from spindle axis to column surface (mm)	350-1370
	Headstock travel (mm)	1015
	Distance from spindle nose to table surface (mm)	260-1210
	Spindle taper(MT)	4
	Spindle speed steps	16
	Spindle speeds range(r.p.m)	32-2500
	spindle travel (mm)	270
	Spindle feeding steps	8
	Spindle feeding range(mm/r)	0.10-1.25
	Rocker vertical moving speed(mm/min)	1.27
	Rocker rotary angle	±90°
	Maximum resistance to the spindle(N)	12250
	Main motor power(kw)	2.2
	Movements motor power (kw)	0.75
	N.W/G.W(Kg)	2200
	Dimension machine(L×W×H) (mm)	2053 x820x2483

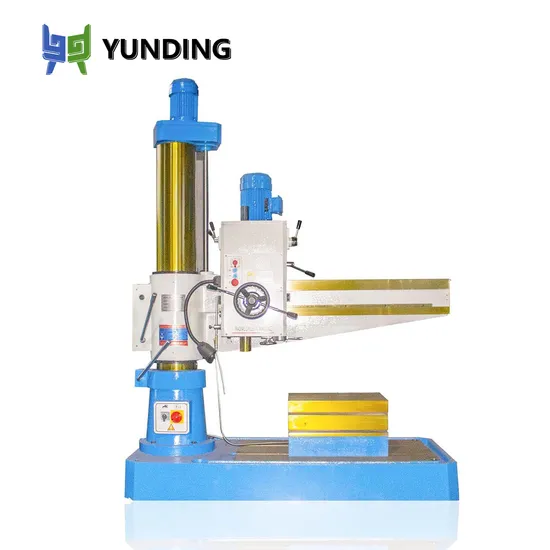

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
