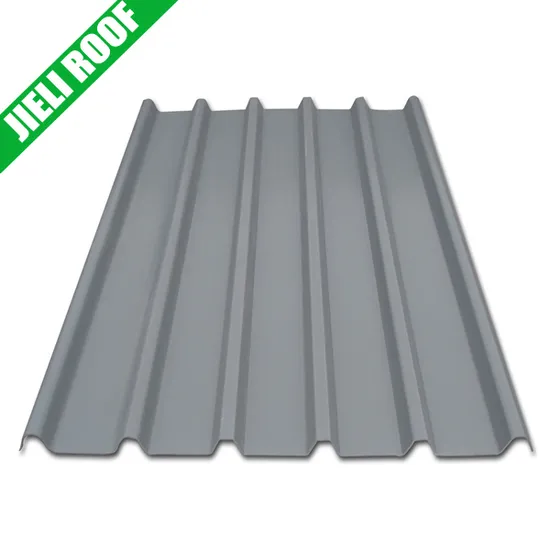

Heat Insulation Corrugated Roof Sheet

Product Description

Product Description Advantages for heat insulation Corrugated Roof Sheet
1. Corrosion resistance.
2. Color stable.
3. Sound absorption and heat insulation.
4. Good water resistance.
5. Fireproof resistance.
6. Easy to install.
7. Good impact and low temperature resistance.
8. Light weight.
9. Stable volume.
10.Environment friendly and energy saving.
Technical data for heat insulation Corrugated Roof Sheet

Item	Content	Result	Standard
Environment	Pollution or environment friendly	No asbestos and Environment friendly Recycling material	GB6566-2001, A standard good for Environment
Heat distortion temperature	Under 70.0°C	No change	GB/T1634-2004
Vicat softening temperature	Under 75.2°C	No Softening	GB/T1633-2000
Hard to burn	B1 Grade	Oxygen index: 32.4	GB/T2406-1993
Vertical Burning	FV-0	FV-0	GB/T2408-1996
horizontal Burning	FH-1	FH-1	GB/T2408-1996
Impact Resistance	no crack	0/10	GB/T8814-2004
Density	1.75-1.95	1.778	GB/T1033-1986
Corrosion-resistant	Acid (HCL,H2SO4,HNO3)5%	No change	QB/T3801-1999
	Alkaline(NaOH)5%	No change	QB/T3801-1999

Installation Process for heat insulation Corrugated Roof Sheet
-Easy installation,similar to steel roofing sheet.
-Clients can get installation Video when once purchase product.
-Provide full course of follow up service.
Application
Packaging & Shipping
1. Pallet packaging :
length of UPVC roof sheet less than 2.0m, should use pallet, easy to load and upload.
2. PE Bags Packaging: length of UPVC roof sheet more than 2.0m, should use PE bags, 3-5 pcs/bag.
3. Max container loading : 4000 square meters for 20'GP ; 5000 square meters for 40'GP.
Company Profile
Founded in 1994, Laizhou Jieli Industrial Co., Ltd. is an 'ISO9001 :2008' certified company, which is specialized in the research, development, manufacture and supply of UPVC roofing sheet, Resin roof tile, Glass fiber reinforced resin roof tile and FRP roofing sheet for over 30 years.

2003 Successfully to produce advanced Jieli brand roof tile, which is Anti-UV. Long life time 50 years, colorfasting no change 20 years.
2004 passed ISO9001:2000 quality control system. Now we have passed ISO9001:2008.
2006 got environment friendly certificate.
2007 got famous Brand by government.
2011 Nepal government officers visited JIELI company and placed orders.
2012 The Venezuelan government purchase 200x20FCL containers.
2012 Make cooperation with France company, exported products to Europe market.
2013 Our products are sold in Homecenter, Buidling material supermarket.
2014 Jieli owned a Lab for testing the quality of the products to eusure high quality.
Our client
-Canton Fair; BIG 5 Dubai; India ACE; FEICON; MOSBUILD exhibition.
-Exporting to more than 135 countries, such as Latin America, Europe, Middle East, Africa, West and South-east Asia and Australasia.
FAQ
1. What machine do you use to cut UPVC roof sheet?
Using portable cutting machine.
2. What machine do you use to install the screws?
Portable electric drill.
3. How to install roof sheets?
Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave.
4. What is the temerature limited of the environment that your roof can be used?
Temperature range: From Minus 35 degree to 72 degree
5. What color can you produce?
White, blue, brick red, green, grey etc, same as our color swatch. If you need special color, please provide sample.
6. Does you charge for the samples?
According to our company policy, we just sent free samples to customers while the customers bear the freight fees.
7. Can you produce according to customers'design?
Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould open fees,after certain quantity, the open mould fees will be returned as product.
Supply high quality roof material and best solution !
Know more details, pls send email with your inquiry details!
