China 1390 Laser Cutting Machine
| US$8,900.00-15,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-1390
Application
Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Gaseous Laser
Laser Technology
Laser Control Fault Cutting
Working Area
1300mm*900mm
Table
Blade
Laser Power
260W
Controller
DSP
Motor
Stepper
Chiller
Cw5200
Working Voltage
AC220/ 50Hz
Transport Package
Plywood Box
Specification
1300mm*900mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
1000 Sets/ Year
Product Description
Metal Laser CO2 Cutting and Engraving Machine Model DLM-1390ML
Product Introduction
1) 1300mm*900mm
2) co2 laser tube
3) working table:blades

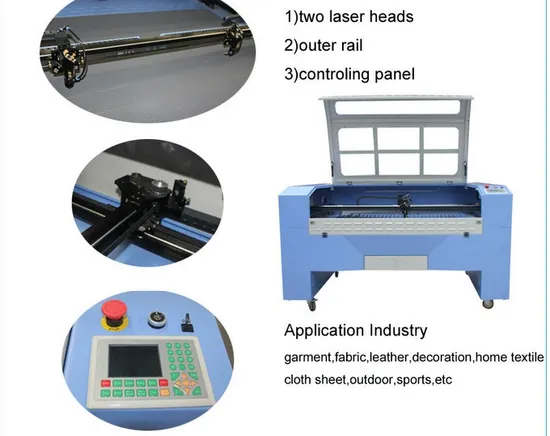

Product details
TECHNICAL PARAMETER
| Model | Metal Laser Cutter DLM-1390ML |
| working area | 1300mm*900mm |
| working table | blade |
| working speed | <= 400mm/s |
| laser type | sealed CO2 laser tube |
| laser power | 100W |
| positioning accuracy | ±0.05mm ( without red rot) |
| Image format surpported | BMP. PLT. DST. AI. DXF. ETC. |
| cooling system | constant temperature water cooling and protecting system |
| power supply | AC220 ±10% / 50-60HZ |
| working temprature | 0-45ºC |
| working humidity | 5%-95% |
| smoke exhasusting | by funnel |
| auxilary cutting gas | nitrogen, oxygen or air |
| package | Plywood box |
Product Features
DLM-1390ML Small Metal&Non-metal Laser Cutter is equiped with co2 laser tube,can be used for cutting metal sheet such as carbon steel,stainless steel and nonmetal materials such as acrylic,die board,MDF,plywood,etc.
Application
Applicable materials: acrylic, stainless steel, carbon steel, MDF,die board.
Application show: metal spectacle frame, furniture plate cutting, MDF photo frame cutting, building model cutting.
