Chinese Manufacture Production of 8 Ton Hydraulic Mini Small Digger Excavators

Product Description

Product Description

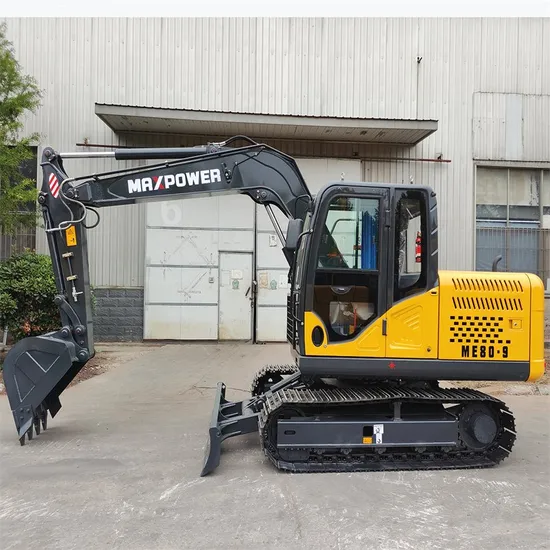

ME80.9 Excavator compact structure, fast action speed and comfortable operation;
Original Yanmar engine: automatic idle function with low energy consumption.
Load sensing hydraulic system: realize precision control on different executive elements, with good controllability and high work efficiency.
New comfortable cabin, with AC, radio and USB joint, larger vision.
Product Parameters

MODEL	ME80.9
Operating weight (T)	8
Bucket capacity (m3)	0.32
Engine model	YANMAR 4TNV98T
Rated power (kw/r/min)	54.3/2200
Volume of fuel tank (L)	130
Travel speed (km/h)	5.1/2.7
Swing speed(r/min)	10
Max climbing degree°	70
Bucket digging force at power max (KN) ISO	52
Average grounding pressure(KPA)	30
Hydraulic pump model	InLine HP3V80
Maximum flow (L/min)	165
Setting pressure (MPa)	32
Volume of hydraulic tank (L)	90
A Overall length (mm)	6100
B Overall width (mm)	2300
C Overall height (to top of boom)(mm)	2515
D Overall height (to top of cab)(mm)	2680
E Counterweight ground clearance (mm)	760
F Min. ground clearance (mm)	380
G Tail swing radius (mm)	1755
H Track grounding length (mm)	2150
J Track length (mm)	2760
K Track gauge(mm)	1700
L Track width (mm)	2150
M Track shoe width (mm)	450

Packaging & Shipping
A 40 foot container can accommodate 2 complete machines. If the working device is dismantled, three units can be installed.
Company Profile
Jining Maxpower Machinery Co., Ltd The founder and teams of Maxpower company has more than 30 years' experience for designing, manufacturing and sales for construction machinery, from 1990s, they worked for the international famous construction machinery company in China, since 2004,the team was separated from the company and has developed his products range from Mini size to large mining excavator.From 2015,the team recognized Jining Maxpower Construction Machinery Company, developed the products such as rotary drilling rig, piledriver, material handling machinery etc.. As the professional company, we can provide wheel loaders, bulldozers and wheel excavators for supporting our customers.During these years, Maxpower has exported its products to more than 30 countries in the world.
Our Advantages
Quality manufacturing The product line includes various types of excavators ranging from 3.5 tons to 70 tons. The company's existing production workshop is 20,000 square meters, with an annual production scale of 3,000 general-purpose excavators, special excavators and their variants. Two assembly lines, more than 20 sets of professional manufacturing equipment. Best chinese excavator High-quality products and high-quality services make the products of the Maxpower brand sell well all over the country, and are exported to 50 countries and regions such as Oceania, the Middle East, Africa, Eastern Europe, Southeast Asia, and South America. One-stop solution There are representative offices and the first-class of international distributors in more than 30 countries, repling on the efficient and high-quality network built by these represend tative offices/distributors and service providers, timely delivery of high-quality products and services, helping global customers realize value.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.
