Plastic PE/PP/PPR/HDPE/LDPE Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine

Product Description

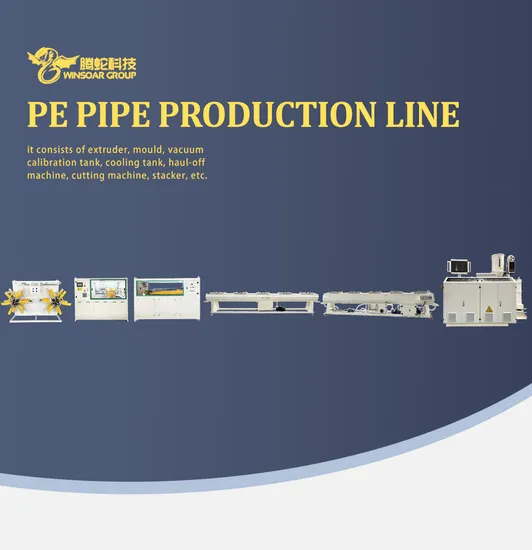

PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet/laser printer, etc. to achieve the production and manufacture of high-grade tubing.
Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler
PE Pipe Extrusion Machine Features:
1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer a stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

330 Series Classical Production Line
Diameter	Type	Max.Capacity(kg/h)	Max.Haul Off Speed(m/min)	Power
20-63	SJ65/33	220	12	55
20-110	SJ65/33	220	12	55
50-160	SJ75/33	400	10	110
90-250	SJ90/33	400	6	110
160-450	SJ120/33	500	4	160
400-630	SJ120/33	850	2	280
500-800	SJ120/33	850	2	280
315-630	SJ120/33	850	2	355
500-800	SJ150/33	1100	1	400

380 Series High Efficient Production Line
Diameter	Type	Max.Capacity(kg/h)	Max.Haul Off Speed(m/min)	Power
20-63	WSD60/38	320	30	70
20-110	WSD60/38	380	20	90
40-160	WSD60/38	460	15	110
50-250	WSD75/38	600	12	160
110-450	WSD90/38	850	8	250
250-630	WSD90/38	1050	4	280
500-800	WSD120/38	1300	2	355
710-1200	WSD75/38 WSD90/38	1450	1	160/250
1000-1600	WSD90/38	1900	0.6	280/280

The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.
The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.
Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.
The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.
This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging, automatic rewinding, and easy operation.
Accept finished products and automatically turn over.
