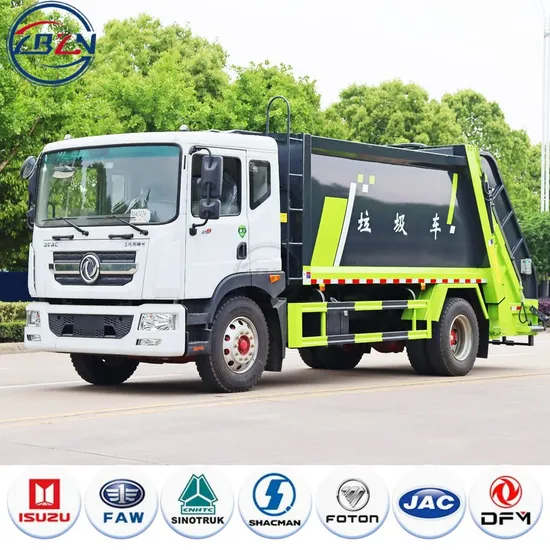

12 Cubic Meter Dongfeng Compressed Garbage Truck for Sale

Product Description

project	parameter	remarks
Chassis model	EQ1185LJ9CDE
wheel base (mm)	4500
tyre size	10.00R20 18PR
gear-box	The 8 gear gearbox
engine type	Cummins 230 HP / Cummins 195 HP	National VI emissions, a diesel engine
Engine power (kW)	169kw/143kw
outline dimension [Length, width and height (mm)]	7660,7950,8150,8210,8500,8700X2500X3250
Maximum total mass (kg)	18000
Rated mass (kg)	7305,7005,7985
curb weight (kg)	10500,10800,9820
Effective box volume (m3)	10-14
mode of operation	Electric / manual / remote control
One-feed cycle time	12-25S
discharge time	≤25S
Prepress pressure of sliding scraper	200kg

The appearance of the box is circular and streamlined, and the overall folded edge of the bottom plate is not welded, eliminating leakage risk. It is simple and beautiful, has strong deformation resistance, and has good structural reliability. At the same time, it effectively increases the actual loading capacity. It exceeds similar products. It uses high-strength manganese steel plates, which are not easy to deform, wear resistance, and have strong corrosion resistance.
The power take-off device adopts a well-known domestic brand, Jiashan power take-off device. The electrical system equipped with the entire vehicle can realize fully automatic control of the engine output, ensuring that the acceleration or idle state can be automatically selected under working or other working conditions, reducing power loss and fault occurrence Reduce fuel consumption, more stable and energy-saving.
The oil pump adopts the well-known domestic brand Anhui Anhui liquid oil pump, and is equipped with a compaction valve to increase compression density and increase load capacity. The load capacity is equivalent to two and a half times that of the same ton-class non-compression garbage truck. Wisenbole multi-way valve, Guangzhou Tianhe galvanized hydraulic oil pipe, hard link at the multi-way valve, neat and beautiful, fast heat dissipation, high working efficiency, adopts the latest two-way compression technology, and achieves compression ratio exceeding the domestic and foreign first-class brand accessories 1:2.5, single cycle ≤20 seconds, achieving exponential improvement in garbage collection and efficiency.
The hydraulic oil tank is increased and the volume is increased to prevent the high temperature of the hydraulic oil. All hydraulic oil must be added to the oil tank through the hydraulic oil filter. The high-pressure pipeline filter can be installed on the pressure pipeline of different pressure levels to further clear or block. The outside world is brought into the component and causes wear or stuck, as well as impurities generated by chemical action of the internal medium itself, etc. It is equipped with a high-pressure filter with an oil filtration accuracy of 0.01 microns. Reduce the failure rate and effectively prevent damage to accessories;
Operation automation: The intelligent control system adopts imported CAN bus design and has a modular structure. By combining proximity switch and hydraulic induction, an efficient, stable and easy-to-maintenance compression solution is achieved. It has three manual, automatic and semi-automatic control methods, and can be operated inside the cab, front of the box and rear of the box. , and is equipped with a remote remote control, which can provide all-round different working environments, making it convenient and efficient.
Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the usage rate of the vehicle. The pressure regulating valve changes position to prevent customers from adjusting pressure without authorization. The power take-off device is equipped with warnings to remind customers to switch the power take-off device to prevent damage to the power take-off device. The rear can optionally be equipped with a flip mechanism with a trash can (or bucket).
The customer's use environment is considered to the greatest extent. There are many highlights of humanized design, including night lighting, dual sewage tanks, drainage pipes, remote control, operation and maintenance manuals and videos.
