173f 178f 186f 188f Original Kama Diesel Engine Power Tiller

Product Description

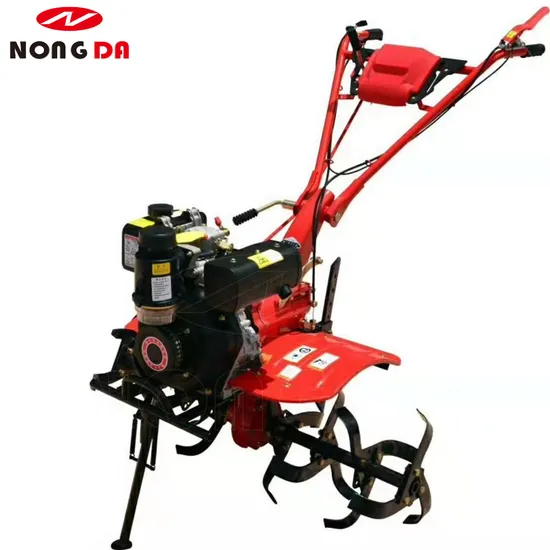

173F 178F 186F 188F Original Kama Diesel Engine Power Tiller
Original Kama Engine or self-made Diesel engine is optional; Product Parameters

Disesel Tilling Manager	NDT550K KDT550KE	NDT610K KDT610KE	NDT910K /NDT910KE	NDT980K /NDT980KE
Calibration Traction (N)	1400	900	1400	1400
Overall Dimentions (L x W x H) (mm)	1400X700X950	1800X1000X1200	1800X1000X1200	1800X1000X1200
Tread (mm)	520	520	520	520
Front Support Point Range (mm)	500	500	500	500
Minimum Ground Clearance (mm)	105	105	105	105
Approach Angle Φ (Horizontal)	34°	34°	34°	34°
Minimum Turning Round Radius (m)	0.6	0.6	0.6	0.6
Minimum Horizontal Passing Radius (mm)	1.35	1.35	1.35	1.35
Net Weight (kg)	95	110	120	125
Clutch Type	Friction disc clutch	Friction disc clutch	Friction disc clutch	Friction disc clutch
Output Shaft Speed (rpm)	1418	1418	1418	1418
Ground Clearance of Traction Frame's Lower Supporting Surface (mm)	365	365	365	365
Armrest Frame	90°	90°	90°	90°
Productivity	according to the instruction manual	according to the instruction manual	according to the instruction manual	according to the instruction manual
Tire Specification	4.00-8	4.00-8	4.00-8	4.00-8
Tire Pressure (kg/cm2)	1.2	1.2	1.2	1.2
Engine Model	KM173F/E	KM178F/E	KM186F/E	KM12DL500F/EDL
Battery (for model CE, LE only)(Ah)	36	36	36	36

Detailed Photos

About Us

Taizhou Nongda Machinery Co.,Ltd is located in Taizhou City, Zhejiang Province,China,next to Ningbo Port & Shanghai port,it is very convenient for shipment.
Nongda is a Professional Manufacturer of Generator, Water Pump, Engine, Power Tiller,
Power Sprayer, Pressure Washer, Brush Cutter and some other Power & Agricultural Machinery.
We Own Self brands NONGDA ,KINGMAXPOWER,also offer the products Powered by Honda,
Yamaha,Briggs & Stratton .
Nongda aimed to be the respectable enterprise who can offer Excellent Quality and VIP service
to every Clients all over the world, Whenever you come to Nongda, we will make you feel at home

Tips for New buyer

Few useful tips while you considering us as new supplier:
1.Quality is depend on your market request to offer, we have self-made normal quality and high quality engine,original Honda engine, Kama Engine, B&S engine for your optional.
2.Price based on FOB SHANGHAI/NINGBO, requseting for CNF&CIF price is welcome.
3.MOQ 10PCS,50PCS.100PCS for different products.
4.Delivery time 15-40 days depending on the actual product requirements.

5.Payment term 30% deposit, 70% before shipping. 100% deposit required for amount under $5000.
Multifuctional Currencies accepted as follows:

6.Support multi-product container mixing, one-stop purchasing. Please provide the estimated quantity, we will offer the loading plan for 20ft/40HQ.

7. Lifetime spare parts and tech support.

8. Factory ISO9001/140001 audited by TUV, products CE ,EPA approved, EUV emission certified, for option.
√ As a factory, we will always support your with the technologies for all of our products.
√ If any warranty case happens, we will get back to you with our solutions within 24 hours.
√ All the spare parts, within our warranty period, are for free.
√ If exceeds the warranty period, we can also provide the spare parts for all of our products.
Sincerely welcome you to establish long-term cooperation with us,to create a bright tomorrow.
