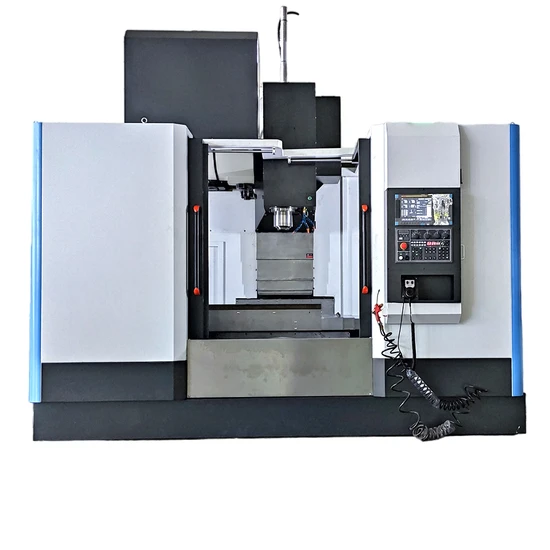

Automatic Milling CNC Machine High Speed 12000rpm Vertical Machining Center

Product Description

Product Description

APPLICATION: Vertical CNC machining center is also named cnc milling center machine, widely used in automobile, aviation, aerospace, mold, machinery manufacturing and other fields. vmc milling is an efficient, precise and intelligent metal processing equipment. It can automatically change tools and position on three coordinate axes. It is suitable for processing various complex parts, such as plates, discs, shells, molds, etc.

vmc 650 vmc 850 cnc milling machine hot selling vertical machining center from China factory
Product Parameters

HIGH-END BRAND CNC MANUFACTURER FROM CHINA

ITEM	UNIT	VMC650	VMC850	VMC1160	VMC1270	VMC1370	VMC1580
- STROKE -
X-Axis Travel	mm	650	800	1100	1200	1300	1500
Y-Axis Travel	mm	400	500	600	700	700	800
Z Axis Travel	mm	500	500	600	600	700	700
Distance From Spindle Center To Column Guide Rail	mm	500	590	650	650	785	810
Distance From Spindle Nose To Worktable	mm	120-620	140-640	120-720	140-740	110-810	170-840
- FEEDING -
X-Axis Rapid Traverse Speed	m/min	36	36	24	24	24	15
Y-Axis Rapid Movement Speed	m/min	36	36	24	24	24	15
Z-Axis Rapid Movement Speed	m/min	36	36	24	24	24	12
Cutting Feed Rate	mm/min	1-10000	1-10000	1-10000	1-8000	1-8000	1-5000
- WORKTABLE -
Workbench Area	mm	400*900	500*1000	600*1200	700*1300	700*1400	800*1700
Workbench Bearing	kg	400	600	800	1000	1200	1500
Table T-Slot	mm	3-18	5-18*90	5-18*100	3-18*125	5-18*122	5-22*135
- SPINDLE -
Spindle Speed	rpm	8000	8000	8000	8000	8000	6000
Spindle Taper	-	BT40	BT40	BT40	BT40	BT40	BT40
Main Motor Power	KW	5.5	7.5	11/15	15/18.5	15/18.5	15/18.5
- PRECISION -
Positioning Accuracy (Jis Standard)	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Repeat Positioning Accuracy (Jis Standard)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
FULL MACHINE
Size	mm	2430*2000*2550	2700*2200*2500	2900*2350*2350	2800*2260*2560	2880*2280*2570	4300*3200*2100
Weight	kg	4000	5500	7000	7800	8800	13000

Detailed Photos
The manufacturing quality of the machining center directly affects the accuracy, efficiency and service life of the processed products.
In order to ensure the excellent quality of the machining center, strict control is usually carried out from the following aspects:
Design stage:
Structural optimization design: Finite element analysis and other means are used to optimize the structure of the machine tool, improve rigidity, reduce vibration, and thus improve machining accuracy.
Component selection: High-precision, high-rigidity linear guides, ball screws and other core components are used to ensure the stability and accuracy of moving parts.
Thermal deformation analysis: Analyze the thermal deformation of the machine tool during the machining process, and take corresponding measures to compensate to ensure stable machining accuracy.
Manufacturing stage:
High-precision machining: Use high-precision CNC machine tools and measuring instruments to perform high-precision machining of machine tool parts to ensure assembly accuracy.
Strict assembly process: Use precision measuring instruments to accurately assemble the various components of the machine tool to ensure overall geometric accuracy.
Strict quality control: During the machining and assembly process, strictly follow the process requirements and inspect key processes to ensure product quality.
Performance testing phase:
Geometric accuracy test: Test the positioning accuracy, repeat positioning accuracy, straightness, flatness and other geometric accuracy of the machine tool.
Dynamic performance test: Test the acceleration performance, deceleration performance, vibration characteristics and other dynamic performance of the machine tool.
Temperature stability test: Test the performance of the machine tool under different temperature environments to ensure its stability under different working conditions.
Material selection:
High-strength materials: Use high-strength and high-rigidity materials to manufacture the main components of the machine tool such as the bed and columns to improve the rigidity of the machine tool.
Wear-resistant materials: Use wear-resistant materials to manufacture guide rails, lead screws and other easily worn parts to extend the service life of the machine tool.
Process control:
Heat treatment process: Perform appropriate heat treatment on the key components of the machine tool to improve its hardness, wear resistance and toughness.
Surface treatment process: Perform appropriate treatment on the surface of the machine tool, such as spraying, chrome plating, etc., to improve its corrosion resistance and aesthetics.
Assembly accuracy:
Precision measurement: Use high-precision measuring instruments to accurately measure the various components of the machine tool to ensure assembly accuracy.
Adjustment and correction: During the assembly process, adjust and correct the geometric errors of the machine tool to ensure that it meets the design requirements.
The above technical means can effectively improve the manufacturing quality of the machining center, making it have the characteristics of high precision, high efficiency, high reliability, etc., to meet the high requirements of modern manufacturing industry for processing equipment.

YOTMT is an innovative high-tech enterprise in China with hundreds of patents. Based on the ISO9001 quality system, it produces a variety of high-performance, high-precision and high-reliability CNC machine tools and combination machine tools to meet the diverse needs of customers.
The company has been highly recognized by the country and has been rated as a national trustworthy enterprise, a nationally rated trustworthy product, and a famous Chinese brand. Our products are widely praised in the mid-to-high-end markets at home and abroad.
The main product types include multi-functional end center hole machine tools, double-end high-speed drilling machines, parallel CNC lathes, double-end turning and milling lathes, double-end horizontal machining centers, combination boring machines, combination milling machines, and general CNC lathes and machining centers.



facing and centering machine double side ATC machining center more solutions

Company Profile


Sales·Concept Our main sales methods are agent channel sales, product bidding cooperation, and exhibition sales.Our main sales methods are distributors, distributors, franchise sales, product bidding, exhibitions and other sales methods. Online retail is a project we have only recently invested in. Through high-quality products, excellent solutions, and ideal prices, we will further enhance the company's popularity.

Quality·Safety·Innovation YOTMT Machine Tool is a professional, efficient and innovative CNC machine tool developer, with more than 70 product patents and technical patents, enjoying a high reputation at the national level. And successively won honorary titles such as National Integrity Enterprise, Outstanding Contribution Enterprise, Chinese Famous Brand, ISO9001 quality management system certification,national quality conformity assessment quality trustworthy product,and AAA Enterprise.


FAQ
What are the main products of your company and what are their advantages?
Our main products are CNC machine tools, machining centers and special machine tools. We have a comprehensive science and technology enterprise specializing in the design, manufacture, sales and service of these products. Our products have highprecision, high efficiency, high stability and low energy consumption. We can also customize products according to customer needs. How do you ensure the quality of your products and what are your quality certifications?

We have a strict quality control system from raw material procurement to finished product inspection. We have advanced testing equipment and professional technicians to ensure the accuracy and performance of our products. We have passed ISO9001 quality management system certification and CE certification.

How do you provide after-sales service and warranty for your products?

We provide 12 months warranty for our products from the date of shipment.and lifetime after-sales service. We also provide online technical support, spare parts supply, training and maintenance service for our customers. We have a professional after-sales team to solve any problems you may encounter.

How do you deliver your products and what is your delivery time?

We can deliver our products by sea, air or land according to your preference. We have a fast delivery time of 30-60 days depending on the order quantity and product type.

What are your prices and payment terms?

Our prices are competitive and reasonable in the market. We can offer you different payment terms such as T/T, L/C, D/P, D/A, etc.We can also provide you with trade assurance service to protect your order and payment.

Do you have any agents or distributors in our country?

As a leading famous brand in China, our international sales channels are still expanding, please consult online for specific countries. Welcome qualified distribution agents to join us, we look forward to cooperating with you.
