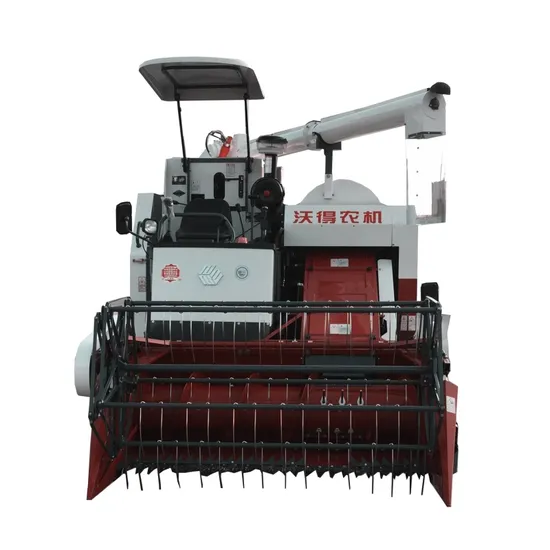

2.2m Cutting Width Whole Feeding Mini Rice Harvester Combine
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4LZ-4.0E
Application
Rice, Wheat
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Warranty
One Year
Combine Harvester
Crawler Type Harvester for Rice and Wheat
Applications
Rice or Wheat Harvesting
Feeding Capacity
5kg/S
Cutting Width
2800mm or 3200mm
Threshing Cylinder
540X1330mm
Efficiency
0.5-1.0ha/H
Product Name
2.2m Cutting Width Whole Feeding Mini Rice Harvest
Transport Package
in Container
Specification
ISO
Trademark
WORLD
Origin
China
HS Code
84295100
Production Capacity
5000 PCS/Year
Product Description
agriculture crawler type combine harvester for rice and wheatMain Features:
1.Equipped with turbocharged engine 64.7kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields.
Specifications:
| MODEL | UNIT | 4LZ-4.0E | |
| TYPE | FULL-FEED,TRACK COMBINE | ||
| ENGINE | MODEL | 498BT/BZT/L, 4C6-88M22 | |
| TYPE | WATER-COOLED,4-CYLINDER, DI-INJECTION, VERTICAL DIESEL | ||
| RATED POWER | KW/HP | 64/88 | |
| RATED ROTATION SPEED | RPM | 2650 | |
| FUEL TANK CAPACITY | L | 130 | |
| OVERALL DIMENTIONNS | MM | 5100x2890x2700 | |
| WEIGHT | KG | 2800 | |
| CUTTING WIDTH | MM | 2000/2200 | |
| FEEDING CAPACITY | KG/S | 4 | |
| GROUND CLEARANCE | MM | 300 | |
| WORKING EFFICIENCY | HA/H | 0.5-0.9 | |
| TYPE OF BLADE | V TYPE/LEFT AND RIGHT | ||
| TYPE OF CUTTING BAR AUGER | SCREW CONVEYING | ||
| THRESHING | TYPE | AXIAL FLOW TYPE WITH BEAT BARS | |
| THRESHING CYLINDER | MM | 620X2050 | |
| FILTRATE TYPE | VIBRATING SIEVES+CENTRIFUGAL FAN | ||
| TRACK | SIZE | MM | 400/450/500X90X51 |
| TRACK GAUGE | MM | 1150 | |
| TYPE OF GEARBOX | HYDRAULIC TYPE WITH HST | ||
