Product Description

Focus on box packaging solution - cartoning machine
Automatic food products box packer

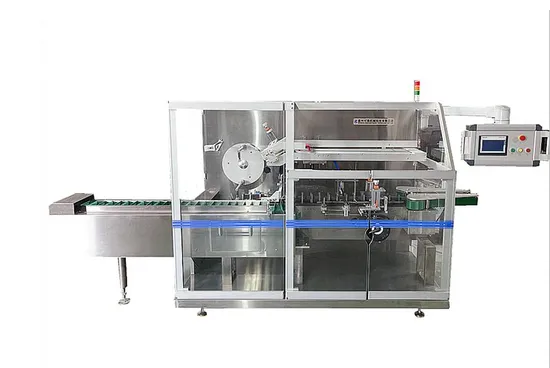

KDZ-130 automatic box packing machine is our company in combination with a number of advanced technology at home and abroad on the basis of self-innovation research and development of models, and strictly according to the pharmaceutical industry "GMP" requirements. High stability performance, simple structure, easy to understand operation characteristics; Manual automatic folding and transmission, carton absorbing forming, multi-station servo with speed pushing mechanism related technology to meet the industry advanced standards, concise appearance design and multi-station servo with speed pushing structure make the operation and maintenance more convenient; The outer ring of double station planetary wheel rotates outward to open the box and has a preforming device to ensure that the carton is fully opened and formed.
This machine is a automatic continuous packing machine. It is a high performance product integrating machine, light, electricity and gas. It is suitable for automatic packing of aluminum-plastic bubble cap board, bottle, hose, soft double aluminum, bag and so on, and can form a packing production line with it.
Scope of application:
Aluminum foam cover board, ointment, tray, soft double aluminum, bottles, bags and other similar items.
Features:
Machine PLC automatic control, frequency control, electrical components are international famous brand.
Adopt man-machine interface operating system.
Automatic display of failure, packing speed and finished product count.
Automatic detection of drug version, manual leakage, elimination of waiting and other functions.
Stable performance and easy operation.
Technical parameters:

Model: kdz	100	130		180	200
Speed:	30-100boxes/min
Box size(L*W*H):	( 70-220)*(14-90)*(14-65)mm	( 70-250)*(50-120)*(20-90)mm		( 70-280)*(80-180)*(30-90)mm	( 70-350)*(80-200)*(20-90)mm
Instruction book:	Paper material		50-70g/m2
	Unfolded size range		(80-300)mm*(70-210)mm
	Folded size range		1-4 folded(70-210)mm X (20-40)mm
Box paper material:	250~450g/
Main motor power:	1.5 kw
Power supply:	380V 50Hz (220V 60 Hz)
Work pressure:	0.5Mpa, 0.6m³/h
Air pressure:	≥ 0.9m³3/h
Dimensions (length × width × height):	3700(L)×1500(W)×1900mm(H)
Machine weight:	2000 Kg
Special Size Customization
