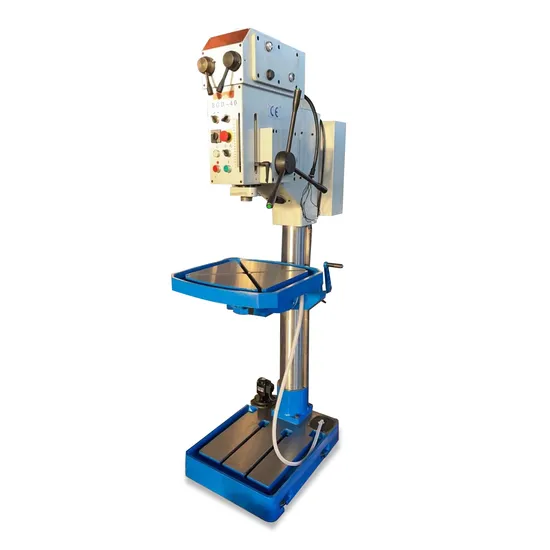

Heavy-Duty Vertical CE Certified Metal Drilling Machine with Rotating Table

Product Description

Products Description
Introduction
Coolant system Machine vise 150*150mm hardened jaws,grinded guideways Working table fix handle Key Type Drilling chuck 1-16mm B16 with key Working lamp Tool box Spindle cover with switch Mors taper MK2 and MK3
Specifcation

Brand/Model	Z5040E
Base Table Size	500*730mm
Table Size	560*560mm
T-Slot Size	14mm
Column Diameter	150mm
Main Motor	1,5kW
Power	380V/50Hz
Drilling Capacity	40mm
Tapping Capacity	M24
Spindle Feeds	0,1-0,2/2steps
Spindle Speed	50-1450rpm
Spindle Steps	12steps
Spindle Stroke	155mm
Distance Between Spindle Center to Column	350mm
Wroking Table Rotate	±45°
Spindle Nose	MT-4
Spindle Down Travel	Auto
Distance Between Spindle to Base Table	800mm
Cooling Motor	40W

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
Z5040E Metal Vertical CE Round Column Upright Drilling Machine with Rotate Table
