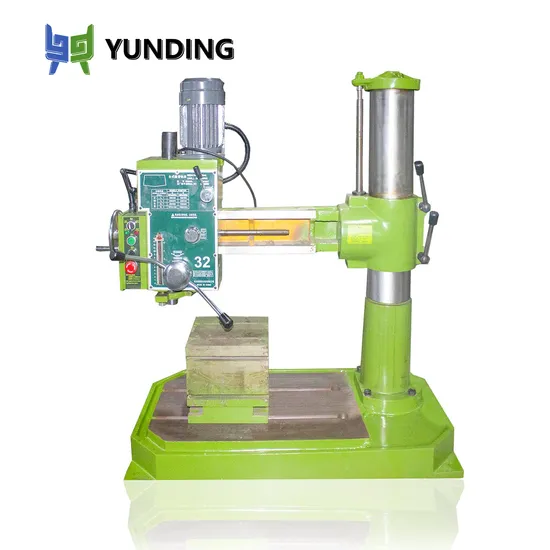

Hydraulic Clamping Universal Z3032X7p Small Drill Metal Radial Arm Drilling machine Sale

Product Description

Product Description
Hydraulic Clamping Universal Z3032X7p Small Drill Metal Radial Arm Drilling Machin Sale
Product Parameters
Features:With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etcStandard accessories:Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield

Main technical parameters	Model	Z3032×7	Z3032×7P
	Max. Drilling capacity(mm)	32	32
	Max. Tapping capacity(mm)	Cast lron 20 Steel16	Cost lron20 Steel16
	Distance spindle axis to column generating line	300~700	300~700
	Diameter of column(mm)	150	150
	Spindle taper	MT3	MT3
	Spindle travel	130	130
	Spindle speeds range(mm)	100~1600	100~1600
	Spindle speeds series	8	8
	Spindle feeds(r/min)	0.08\0.14\0.23	0.08\0.14\0.23
	Rotary angle of rocker in hirizontal plane( °)	360	360
	Distance between spindle nose to working surface of base(mm)	275~680	275~680
	Dimension of worktable(mm)	250×250×250	250×250×250
	Diameter of base(mm)	1050×550×120	1200×625×155
	Overall size(mm)	1235×550×1195	1235×625×1230
	Motor(w)	750 or 1100	750 or 1100
	G.W./N.W.(Kg)	390/310	580/500
	Packing dimension(cm)	122×62×128	127×69×137

we are the most professional in making radial drilling machine
Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
