Gi, PPGI, Color Steel Fuming Container Warehouse Storage System with CE
| US$100,000.00-130,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
Shelf Profile
Certification
CE, SGS
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Gear/Sprocket, Gear Box, Toroidal Worm Box
Thickness
0.7mm
Yield Strength
250MPa
Transport Package
Container
Specification
40GP
Trademark
FUMING
Origin
Xiamen
HS Code
8455229090
Production Capacity
10sets/Month
Product Description

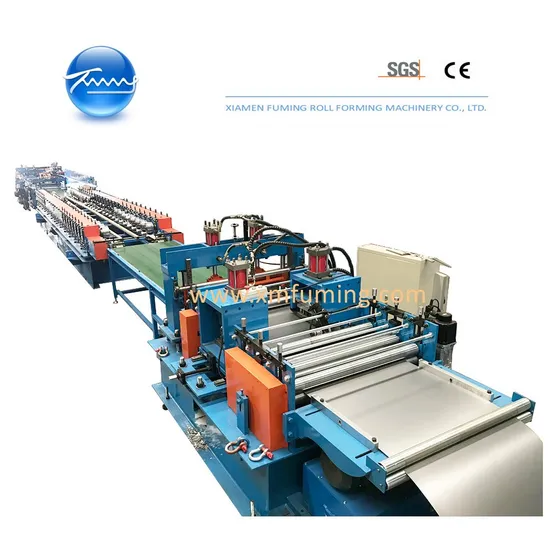

| ROLL FORMING MACHINE FOR SHELF MACHINE | |
| Material Specification | |
| Thickness | 0.7mm |
| Material | GI |
| Yield strength | 250MPa |
| Length | 1250-1500mm |
| Machine Components | |
| 5Ton*900mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.900mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
| Servo Feed-in, Pre-leveling, Pre-Notching & Pre-punching Device | |
| Roll Forming Machine | |
| Driving system | Gear/Sprocket driving |
| Roller material | 45# steel, hard chrome coated |
| Shafts Diameter | Φ75mm |
| Motor to drive | 11KW |
| Motor for size changing | 1.5KW |
| Line speed of rollformer | Approx. 15m/min or customized |
| Hydraulic Post Cutting Device | |
| Powered Conveyor 1 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| Rivet Punching Device | |
| Powered Conveyor 2 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| End Bending Device(First Cut A) | |
| Hydraulic station | 3KW |
| Powered Conveyor 3 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| End Bending Device(First Cut B) | |
| Hydraulic station | 3KW |
| Powered Conveyor 4 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| End Bending Device(Second Cut A) | |
| Hydraulic station | 3KW |
| Powered Conveyor 5 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| End Bending Device(Second Cut B) | |
| Hydraulic station | 3KW |
| Powered Conveyor 6 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| Rivet Pulling Device (Top End) | |
| Hydraulic station | 3KW |
| Powered Conveyor 7 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| Rivet Pulling Device (Bottom End) | |
| Hydraulic station | 3KW |
| Powered Conveyor 8 | |
| Length | 1.8 meters |
| Motor | 0.75KW |
| PLC Control System | |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
