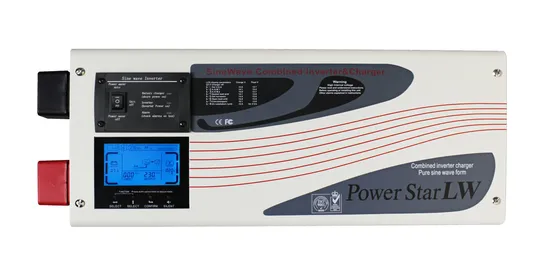

Power Star 6000W Power Charger Inverter

Product Description

Power Star 6000W Power Charger Inverter
Key Features:
* built in AC charger
* UPS function
* Peak Power: 3 times as rated Power
* widely applied in wind Generator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of main power, mobile electricity work also telecommunications device, launch Station, Emengency EPS and so on.
Specifications:

Model No.	LW1000	LW1500	LW2000	LW3000	LW4000	LW5000	LW6000	LW7000	LW8000
Nominal Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W	7000W	8000W
AC Input
Phase & waveform	Single phase & Pure Sine Wave
Voltage	120VAC/230VAC						220,230,240VAC
Acceptable Voltage	194-243VAC\164-243VAC (wide mode)
Line Low Transfer	85V±4%/184 (154 wide mode±4%)
Line Low Return	95V±4%/194 (164 wide mode±4%)
Line high Transfer	135V±4%/253±4%
Line high Return	127V±4%/243±4%
Frequency	50Hz or 60Hz (auto sensing)
Line Low Transfer	47Hz for 50Hz, 57Hz for 60Hz
Line high Transfer	55Hz for 50Hz, 65Hz for 60Hz
Output
Phase & waveform	Single phase & Pure Sine Wave (bypass mode sync to input)
Voltage	120/220/230/240VAC (bypass mode sync to input)						220,230,240VAC
Voltage Regulation	±10%rms (bypass mode sync to input)
Frequency	50Hz±0.3Hz (bypass mode sync to input)
Peak Power	3 times of rating power
Short Circuit Protection	Yes, shutdown after 10ms
Power Factor	0.9-1.0
DC Input
Battery Voltage	12V/24V	12V/24V/48V			24V/48V			48/72V
Minimum Start Voltage	10V for 12V, 20V for 24V, 40V for 48V
Low Battery Alarm	10.5V for 12V, 21V for 24V, 42V for 48V
Low Battery Transfer	10V for 12V, 20V for 24V, 40V for 48V
High Voltage Alarm	16V for 12V, 32V for 24V, 64V for 48V
Max Charging Current	35A/70A
Over Charge Voltage	15.7V for 12V, 31.4V for 24V, 62.8V for 48V
Transfer Efficiency
Line Mode	>95%
Battery Mode	>88%
power saver	Available when the load is less than 25 Watts
Indicators
7-LED Display	From the right to the left,LED1 line mode (green lighting)\LED2 inverter mode
	(green lighting)\LED3 charging mode(yellow lighting)\LED4 Fully charged
	(green lighting)\LED5 over heat shutdown(red lighting)\LED6 Overloaded
	shutdown(red lighting)\LED7 Saving Mode(green lighting)
3-LED Display	Charging Mode(green lighting)\inverter mode(green lighting)\ Alarm(red lighting)
Switch selector	Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is
	turning the inverter off.
Audible Alarm	Sounding when the heatsink's tem is over 105C and shutdown after 30 seconds.
Protections	low battery\over charging\over temp\over load
Communications	RS-232/USB(custom-made)
Environmental
Operating Environment	0-40C,0-90%RH(non-condensing)
Audible Noise	<60dB
Physical
Net Weight(KG)	18	20	20	26	48	48	48	55	60
Dimension, L X W X H(mm)	446*218*179				605*218*179
