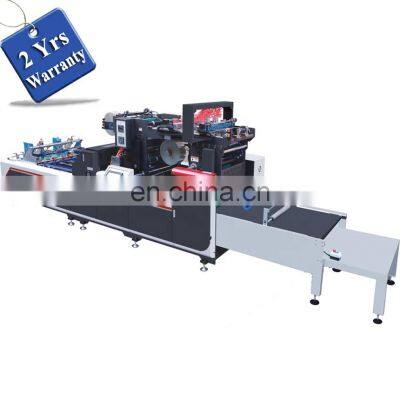

UTM800A CE approval certificate Automatic toy paper display box window patching gluing Machine with corner V cut and creasing

Product Description

Product Description
UTM800A CE approval certificate Automatic toy paper display box window patching gluing Machine with corner V cut and creasing
Videos
Video demonstration only for reference
Video: /watch?v=Si3eNFXlGAA
Product Description
Description:
The model UTM800A/1080A window patching machine is widely used for gluing transparent films on the windows of various carton boxes such as tissue box, medicine box and shirt box, etc. The machine combines following five units: paper sheets feeding unit, positioning adjustment unit, gluing unit, film patching unit, delivery unit. Heavy duty steel structure equipped ensures the machine running in high stability and reliability.
Features
1, Horizontal knife cutting film+Single group film applicator
2, 7 servo motors + Full digital-control
3, 100 groups of order saving and reading
4, One key automatic adjustment of V-punching mould
5, Paper receiving stepper with batch counting
6, Paper vacuum adsorption transport
7, Double sheet / empty sheet gluing rising automatically
8, Film with creasing and cutting angle function
9, Follow label of film printing surface
10, Film with punching holes
11,Film with transverse creasing (optional)
12,Film constant temperature leveling system (optional)
Parameters:

Model	UTM-800A
Max.Paper Size	W800*L550mm
Mini.Paper Size	110*110mm
Paper Weight	Kraft Paper:150-1200GSM White Cardboard:230-1200GSM Corrugated Paper:≤3mm
Max.Film	W300*L300mm
Mini.Film	W30*L65mm
Film Thickness	CPE/PE:0.1-0.3mm PVC:0.08-0.3mm APET/PET:0.06-0.3mm
Max.Film Unwinding Diameter	450mm
Paste error	±0.5mm
Maximum Speed	10000pcs/h
Servo Motor	7 sets
Stepping Motor	Driving Parts: 7 sets 2 sets:V-shaped stamping moulds X-direction automatic adjustment, 4 sets: of Y-direction automatic adjustment, 1 set :Automatic paper receiving
V-shaped Punching Mould	4 kits
Film Creasing Wheels	2 kits
Machine Size	6200*1520*2000mm
Power	380/415V 50/60Hz 9KW
Overall Weight	2500kg

Detailed Images
Paper Feeding Section:
The Paper Feeding Belt of the machine adopts the Japanese Brand Nita which well solves the problem of unsmooth UV printing paper feeding. The paper feeding is realized through bottom belt with the vacuum absorption function. Driven by Servo Motor enables it to switch among multiple paper feeding modes.
Paper Transmission Correcting Rail:
The track with self-locking linear bearing is free to slide. It takes the place of traditional slow screw-driving hand-shaking regulation. The chains orbits which contain high polymer nylon material are in high wear resistance and low noise .Correction pin adopts servo motor separately driving
Vacuum Conveyor and Film Unwinder:
Gluing Section:
The gluing roller is made from 304 Stainless steel material which is in high corrosion resistance and is easy to clean.
Transverse and longitudinal gluing model roller are driven by servo motor which can realize the dual-directional regulation
directly without stopping. The gluing part is equipped with the automatic lifting function. It avoids the glue touching the belt
which reduces the trouble of frequently machine stop for cleaning because of the lack for paper problem.
V Punching and Creasing:
Film Patching Section
Transverse cutting knife is driven by servo motor with high cutting angle precision control. Compared with traditional cylinder Driving.It has got the advantages of low noise, high speed with the angle able to control etc. Roller absorption continuous pasting is in higher speed and requires less towards film compared with traditional intermittent pasting way. The pasting roller is separately driven by servo motor and can freely adjust the film pasting position under machine running circumstances.
Film Web Guiding System
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
