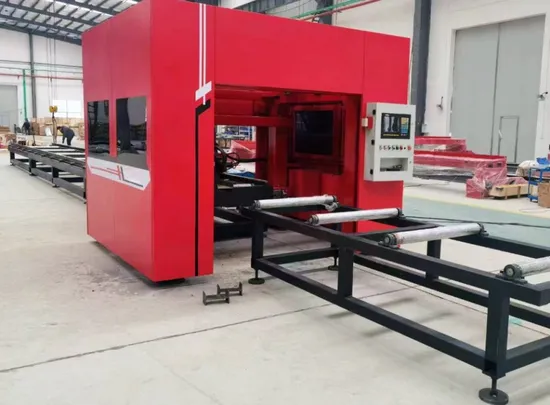

High Accuracy Pipe Profile Plasma Cutter Price Best CNC Plasma H Beam I Beam Beveling Coping Cutting Machine

Product Description

Product Description
If you fabricate structural steel, Our pipe plasma cutting machine will make your operation more efficient. That's what it's doing for a variety of companies who operate outside the traditional building industry.Whether you call it a beam, a channel, a brace or a bracket . . . whether you make it from carbon steel, or stainless steel . . . Our pipe plasma cutting machine will help you make it at the lowest total cost and with unrivaled quality.
Applicable Materials Of H Beam Cutting Machine
Cutting stainless steel, carbon steel, mild steel, iron. Cutting round pipe , square pipe, angle steel, steel channels, H beam, H- beam, H steel etc.
Applicable Industries Of H beam Cutting Machine
metal fabrication, oild and gas pipe, steel construction, tower, train rail and other steel cutting fields.
Detailed Photos
Japan Fuji Servo Motor * High motion precision: It can realize the closed-loop control of position, speed and torque; overcome the problem of stepping motor out-of-step; read data in time with encoder feedback to compare the position.* Speed: Good high-speed performance, generally rated speed can reach 1500-3000 rpm.
Profiles Support
* Support profiles to provent from bending .
Shanghai Fangling Control System
·18.5 "capacitive touch screen, full 3D display (gallery and cutting) ·Win10 system + 128ssd SSD, higher performance configuration ·Remote diagnosis and data statistics (see video) ·Industrial Internet of things and cloud MES standard protocol and interface, supporting OPC UA communication ·Service cycle maintenance of vulnerable parts (system display parameters, monitor service life of vulnerable parts, prompt for timely replacement) ·Multiple groove forms support, fixed groove, dynamic groove, AWS, can achieve customized needs of customers ·Based on Ethernet interface board, supporting bus servo ·Optional piping truss engineering application software ·Support power-off protection function ·Support laser detection device deviation correction / sensor height adjustment / pipe ovality correction ·Various mechanical structures support: 2-8 axis linkage, four-bar linkage (double deflection), TCP, infinite rotation of fitting angle, rotation plus deflection.
·Support cross chuck function, service cycle maintenance of vulnerable parts (system display parameters)
TubeMaster drawing software The 3-D pipe model (step or STP format) can be generated arbitrarily, including round pipe and square pipe. Generate various hole shapes, including round hole, square hole, multilateral, slot, cone hole, elbow truncation, special hole with equal diameter. This software supports the functions of adding lines, cutting compensation, spacing between parts, common edge of trajectory and generating trajectory editing. At the end of the nesting, the software can display the nesting results (processing trajectory and cutting gun posture) directly. Users can see the results at a glance. It has the function of dynamic simulation cutting,and can dynamically simulate the cutting of the nesting results. The user can intuitively see the cutting situation, In the software, the user can maintain the raw material data by himself, and synchronize the raw material results after the completion of the package to the raw material database, so as to facilitate the next cutting. Can automatically generate G code files. Ability to return a specific G code file back to the function of generating graphics.
6 Axis Cutting Beveling Beam
Support hole, beveling and groove cutting .Instantaneously changes speeds and uses sophisticated software algorithms to produce straight through holes. Groove cutting: round pipe / square pipe / channel steel / angle steel / H-shaped steel

Product Parameters

Model	T400
Max Cutting Length	6m / 9m / 12 m
Min Cutting Length	0.5 m
Max Cutting Diamter	800mm
Min Cutting Diameter	30mm
Reposition precision	0.02mm
Maximum cutting speed	12000mm/min
Torch Height control mode	Automatic
Control system	Shanghai Fangling
Electrical Supplier	380V 50HZ / 3 Phase
Beveling Angle	45 Degree

Samples
Certifications
Our pipe cnc cutting machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
