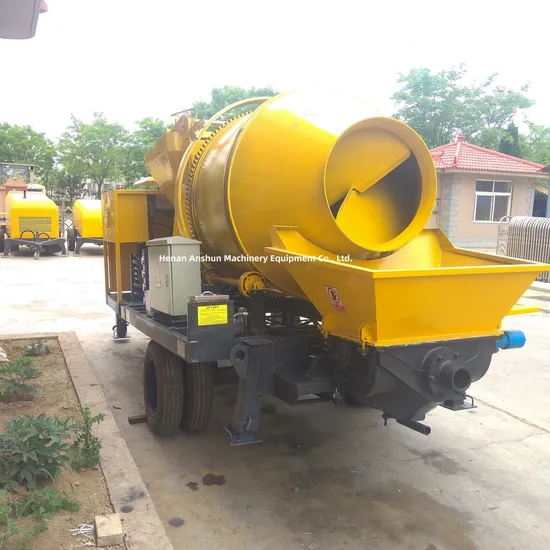

Automatic Diesel Concrete Mixer with Pump Jbs30 Jbs40 Portable Concrete Mixer Pump

Product Description

Product Description
A concrete mixer pump is a construction equipment that combines concrete mixing and pumping functions. It is widely used in construction engineering, bridge construction, tunnel engineering and rural infrastructure construction. The equipment integrates the functions of a concrete mixer and a concrete pump. It can directly mix concrete on site and transport it to a designated location through a high-pressure delivery pipeline, greatly improving construction efficiency and reducing labor costs.
Product Parameters

Items			Units	Parameters
				JBTS30
Whole performance of machine		Max. theo. concrete output	m3/h	30
		Max.concrete throughput	m3/h	15
		Mixer rated feed capacity	m3	0.65
		Mixer rated discharge capacity	m3	0.45
		Max.concrete pumping pressure	MPa	10
		Distribution valve type		S Valve
		Concrete cylinder diameter×stroke	mm	Ф140×845
		Hopper capacity	L	700
		Outlet diameter	mm	Ф100
Power system		Diesel engine	kw	66
		Electrical engineering power	kw	66
		Rotate speed	r/min	1800
		Winding motor power	kw	hydro-motor
		Stir the motorPower	kw
		Water pump motor powe	kw
Hydraulic system		Circuit type		Open circuit
		Pumping system pressure	MPa	32
		Mixing system pressure	MPa	6-8
		Capacity of oil tank	L	350
	The biggest transportation is away from vertically (/Level)		m	120/300
Other parameters		Max. aggregate diameter	mm	Scree: 40
		Aggregate mixer	mm	60mm
		Inside diameter of delivering pipe	mm	Ф80
		Dimensions:length×width×height	mm	6000x2300x3150
		Total weight	kg	5000

Performance Features
1.One machine for two purposes: It combines mixing and pumping in one, reduces equipment investment and improves construction efficiency.
2.Strong adaptability: It can be applied to various working conditions, such as rural construction, building construction, road construction, etc.
3.High degree of automation: It is easy to operate and equipped with a remote control system to reduce manual intervention and improve safety.
4.Energy saving and environmental protection: It adopts efficient power system and hydraulic technology to reduce energy consumption and pollution.
5.Efficient and stable: It adopts advanced S-valve reversing technology and hydraulic system to ensure stable concrete delivery.


Product Application
1.Rural and urban residential construction: suitable for small projects such as new rural construction and building construction.
2.Road, bridge and tunnel construction: can be operated in narrow or complex terrain to improve construction efficiency.
3.Water conservancy projects: used in dams, flood control projects and other scenes to achieve efficient concrete transportation.
Mixer trailer pumps have become one of the indispensable important equipment in modern construction due to their high efficiency, convenience and strong adaptability.
