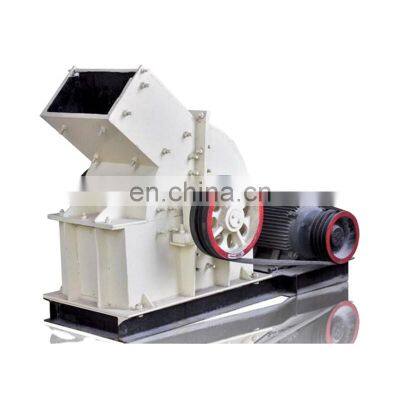

PC series hammer crusher used for mining/cement/coal/metallurgy/building materials

Product Description

Product Description
ModelRotor Size(Diameter×length )(mm)Rotor Speed(r/min)Feeding Size(mm)Output Size(mm)Motor power(KW)Capacity(t/h)Weight(kg)PC400×300Φ400×3001440≤100≤107.55-10900PC600×400Φ600×400960≤100≤1518.510-201500PC800×600Φ800×600970≤120≤154518-242680PC1000×800Φ1000×800990≤200≤1511030-505600PC1000×1000Φ1000×1000990≤200≤1513230-608000PC1200×1200Φ1200×1200750≤250≤2018090-11019000 The hammer crusher mainly relies on the impact energy to complete the crushing material operation.When the hammer crusher is working,the motor drives the rotor to rotate at high speed, and the materialenters the crusher cavity evenly. The high-speed rotary hammer impacts and shears the tearing material, causing the material to be broken.At the sametime, the gravity of the material itself causes the material to The high-speed rotating hammer headrushes toward the baffle and the screen strip in the frame body. The material larger than the mesh size is retainedon the sieve plate and continues to be struck and ground by the hammer until it is broken to the required dischargeparticle size and finally discharged through the sieve plate. Hammer Crusher Features:(1) Work hammer, cast by new technology, with wear resistance and impact resistance.(2) The required particle size can be adjusted according to customer requirements.(3) Hammering the structure of the body and sealing, solving the dust pollution of the crushing workshop and the problem of ash leakage in the body.(4) The overall design is beautiful, compact, with less wearing parts and convenient maintenance. It is an upgraded product.(5) Compact structure, beautiful appearance, good wear resistance and convenient maintenance.Hammer crusher`s hammer head use and purchase skillsIn the working process of the crusher, the hammer of the crusher is very important. The good hammer of the crusher can prolong the service life of the crusher and improve the working efficiency of the crusher. Of course, the quality of the crusher hammer is also very important. At present, the hammer head is made of manganese steel, high chromium material and alloy material.The wear method of the hammer head is mainly impact chiseling. Different sizes of crushers, due to the different size of the hammer head, different working conditions, its wear failure mode is also different. It adopts high manganese steel, alloy steel single material or bimetal composite casting, inlaid composite casting form, combined with advanced production process to produce various hammers to adapt to different service conditions of crusher.Factors affecting the life of the hammer:1: Material feeding and discharge granularity.2: Raw materials in the rainy or rainy days will also affect the life of the hammer.3: The number of times the crusher discharge quilt is blocked and the length of time after the clogging continues, which has a great influence on the service life of the hammer.4: Whether the working part of the hammer head wears to a certain extent is timely or not, which also affects the service life of the hammer.When purchasing the crusher, the crusher hammer should be selected according to the working conditions of the crusher. This can not only make the crusher hammer play a greater role, but also make the crusher work better.Hammer crusher purchase tips:The hammer crusher hammer is the main component that affects the crusher. Therefore, when purchasing the hammer crusher equipment, you can choose the following points: 1. Look at the hammer crusher hammer material. Second, look at the structural design of the hammer crusher hammer. Third, look at the manufacturing process of the hammer crusher hammer. Fourth, look at the technical parameters of the hammer crusher. Fifth, look at the feeding situation of the hammer crusher.
