S14h 8blades Pag Low Noise Axial Cooling Fan for Smoke and Heat Controls

Product Description

Product Description
S1H/S13H/S14H/S16H
The fan diameter ranges from 141 to 745mm, and the blade twist angle can be adjusted from 20°to 50°to meet the different application requirement of the customer. The root is locked in the fan hub by a plastic fixing pin, which ensures that the blade will not be displaced after installation and the twist angle remains unchanged.
Advantages:
1.More efficient
2.Less absorbed power
3.Low noise
4.Light weight High strength
5.Preservative
6.Customization

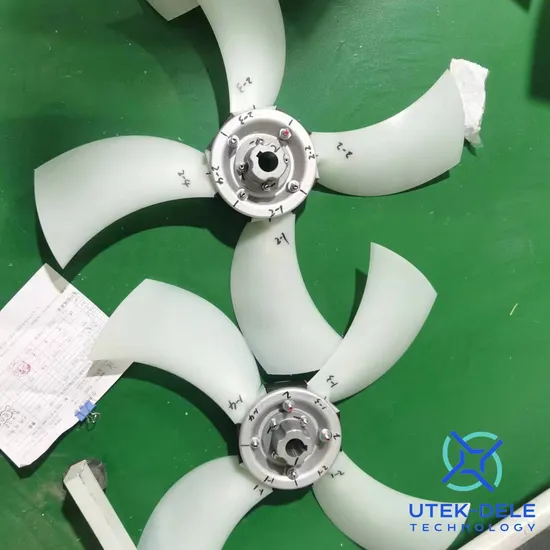

Detailed Photos
Product Parameters
Blade Material

Symbol	Material	Temperature range	Characteristic	Application
PA	Nylon6,Black	-40ºC-110ºC	Anti-aging	Standard load
PAG	Nylon6,Black and white	-40ºC-110ºC	Anti-aging	Heavy load
PAGST	Nylon6,Black	-40ºC-110ºC	Shock and impact	Strong vilbration occasion
PACAS	Nylon6,Blue-gray	-30ºC-100ºC	Conductivity Fire resistance	Explosive danger
ALU	Die-cast aluminum alloy	-40ºC-150ºC	Large temperature range	High temperature

Blade Diameter range

S1H/S13H/S14H/S16H Blade number	Fan diameter mm (Minimum-Maximum)
	S1H/S13H/S14H/S16H
5	357 - 1028
7	394 - 1065
8	474 - 1145
9	408 - 1079
12	488 - 1159
16	583 - 1254

Application

Packaging & Shipping
We can deliver by air and sea
One unit we reinforce with a cardboard box
For multiple units we will use fumigation-free wooden boxes

Factory show
UTEK-DELE has its own processing capabilities and can customise products for customers, as well as R&D production capabilities

Certifications
Partners
UTEK-DELE ADVANTAGE 1.Same quality as wingfan and multiwing
2.Software to design the model
3.Full sets of blade and hub
4.Fast delivery
Give us a chance, and we' ll return you with satisfaction.
