Product Description

Machine Room Cargo Lift Freight Lift

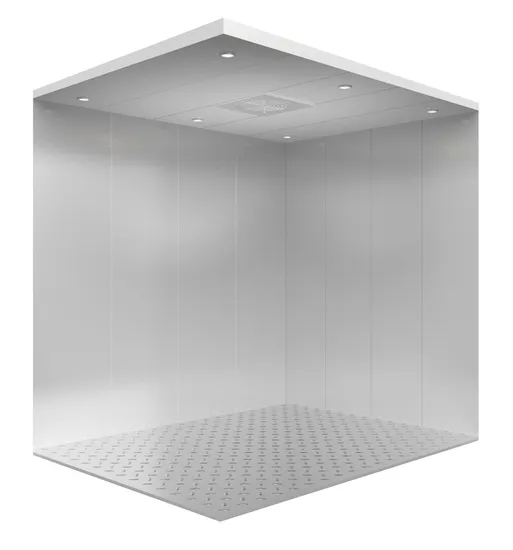

ATLAS-T3/T8/T12 is a small machine room cargo elevator developed by our company, which adopts permanent magnet synchronous gearless host, variable frequency speed control drive, The frequency conversion door system has the characteristics of environmental protection, energy saving, safety, reliability and stability, and the overall layout is simple. Widely used in factories, production lines, warehouses,Shopping malls, shopping centers, exhibition halls and other freight logistics places.
Solution of IFE Freight Elevator
ATLAS-T3

NO.	Specification	ATLAS-T3
1	Capacity (kg)	2000				2500		3000
2	Speed (m/s)	0.5	1	0.5	1	0.5	1	0.5	1	0.5	1	0.5	1
5	Operation System	full collective selection operation
6	Driving System	VVVF
7	Door Operator System	VVVF
8	Traction Machine	Permanent Magnet Synchronous Gearless type
9	Control System	CTRL71
10	Car Dimension mm width*depth	1800×2300		1800×2300		2000×2500		2100×2700		2100×2700		2300×2500
11	Shaft Size mm W*H	2800×2800		3000×2800		3200×3000		3200×3200		3300×3200		3400×3000

ATLAS-T8

Specification

ATLAS-T8

Capacity (kg)

3200

4000

5000

6000

7000

8000

Speed (m/s)

0.5

1

0.5

1

0.5

1

0.5

1

0.5

1

0.5

1

Operation System

full collective selection operation

Driving System

VVVF

Door Operator System

VVVF

Traction Machine

Permanent Magnet Synchronous Gearless type

Control System

CTRL71

Car Dimension mm width*depth

2300×2600

2300×3200

2500×3500

2500×4200

2800×4300

2800×4900

Shaft Size mm W*H

3400×3050

3450×3550

3700×3850

3600×4550

4000×4650

4000×5250

ATLAS-T12

NO.	Specification		ATLAS-T12
1	Capacity (kg)		9000		10000		11000		12000
2	Speed (m/s)		0.5	0.63	0.5	0.63	0.5	0.63	0.5	0.63
5	Operation System		full collective selection operation
6	Driving System		VVVF
7	Door Operator System		VVVF
8	Traction Machine		Permanent Magnet Synchronous Gearless type
9	Control System		CTRL71
10	Car Dimension mm width*depth		2800×5400		3000×5600		3000×6100		3000×6700
11	Shaft Size mm W*H		4050×5750		4500×5950		4500×6450		4500×7050

How to solve the problem of large logistics volume, Labor-intensive handling of freight?
1. Unmanned transportation
The interconnection communication between AGV smart car and elevator can be customized to exchange data, improve the efficiency of cargo transportation and realize intelligent factory.
2. Infrared light curtain safety barrier
The non-contact protection device forms a dense infrared cross light curtain, which effectively prevents the elevator from being damaged by another car when loading and unloading goods.
Customized function of electronic technology industry
1. Clean technology of car environment
According to customer's requirements, FFU unit and air shower unit with corresponding cleanliness levels can be selected to meet customer's cleanliness requirements.
2. Space ultraviolet sterilization
According to the comprehensive disinfection of the car space, the effective sterilization can reach 99%, effectively preventing the cross-spread of viruses and making the elevator space safer.
3. Negative ion fan purifies air.
The negative ion generator produces a large number of negative ions and a small amount of ozone at the same time, and it is easier to absorb various viruses and bacteria when they are combined.
AGV Intelligent Interconnection Function (Optional)
It can customize the interconnected communication between AGV intelligent car and elevator,exchange data with each other, guide AGV intelligent car to take the elevator up and down automatically,and realize cargo handling and intelligent chemical plant across floors. (For providing interface and protocol, please consult operating center.)
ENERGY SAVING AND LOW CONSUMPTION
Leading Rope Anti-loosening Detection Device
Patent No. ZL201420470694.0
The anti-loosening detection device of the towing rope detects the whole process in real time. When the towing rope relaxes, the elevator will stop running immediately to ensure the safety of the elevator.
