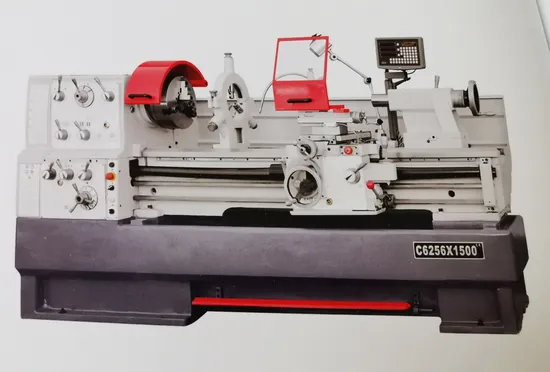

Heavey Duty Metal Lathe Machine
| US$6,550.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6256
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Spindle Nose
D1-6
Spindle Bore
58mm
Max. Swing Diameter
410mm
Voltage
230V
Power(W)
4000W
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Jiangsu
HS Code
845899000
Production Capacity
300/Per Month
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: C6256
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure,giving super rigidity.
| PRECISION METAL LATHE MACHINE | |||||
| Technical spec. | C6241 | C6246 | C6251 | C6256 | |
| FOBQingDao Price(USD) | |||||
| Swing over bed | 410mm(16" ) | 460mm(18" ) | 510mm(20" ) | 560mm(22" ) | |
| Swing over cross slide | 220mm(8-13/16" ) | 270mm(10-3/4" ) | 305mm(12" ) | 355mm(14" ) | |
| Swing in gap diameter | 640mm(25-1/8" ) | 690mm(27-1/8" ) | 735mm(28-7/8" ) | 785mm(30-7/8" ) | |
| Distance between centers | 1000mm(40") 1500mm(60") 2500mm(80") | 1000mm(40") 1500mm(60") 2500mm(80") 300mm(120") | |||
| Valid length of gap | 165mm(6-1/2" ) | 170mm(6-11/16" ) | |||
| Width of bed | 300(11-13/16") | 350(13-13/16") | |||
| Spindle nose | D1-6 | D1-8 | |||
| Spindle bore | 58mm(2-1/4" ) | 80mm(3-1/8" ) | |||
| Taper of spindle bore | NO. 6 Morse | NO. 7 Morse | |||
| Range of sppindle speed | 12changes 25-2000r/min | ||||
| Compound rest travel | 128mm(5" ) | 130mm(5-1/8" ) | |||
| Cross slide travel | 285mm(11-1/4" ) | 316mm(12-7/16" ) | |||
| Max section of tool | 20mmx20mm(1x1" ) | ||||
| Lead screw thread | 6mm or 4T.P.I | ||||
| Longitudinal feeds range | 42kinds 0.031-1.7mm/rev (0.0011" -0.0633" /rev) | 32kinds 0.059-1.646mm/rev (0.0022" -0.0612" /rev) | |||
| Cross feeds range | 42kinds 0.014-0.784mm/rev (0.00033" -0.01837" /rev) | 42kinds 0.020-0.573mm/rev (0.00048" -0.01354" /rev) | |||
| Threads Metric pitches | 41kinds 0.1~14mm | 47kinds 0.2~14mm | |||
| Threads imperial pitches | 60kinds 2~112 T. P. I | ||||
| Threads diametral pitches | 50kinds,4~112 DP | ||||
| Threads module pitches | 34kinds,0.1~7 MP | ||||
| Quill diameter | 60mm(2-5/16") | 75mm(2-15/16") | |||
| Quill travel | 130mm(5") | 180mm(7-1/16") | |||
| Quill taper | No.4 Morse | No.5 Morse | |||
| Main motor power | 5.5KW(7.5HP) 3PH | 7.5KW(10HP) 3PH | |||
| Coolant pump power | 0.1KW (1/8HP) 3PH | ||||
| Overall dimension L x W x H | 220x108x134cm 275x108x134cm 325x108x134cm | 220x108x137cm 275x108x137cm 325x108x137cm | 239x115x143cm 284x115x143cm 334x115x143cm 434x115x143cm | 239x115x146cm 284x115x146cm 334x115x146cm 434x115x146cm | |
| Packing size L x W x H | 225x112x162cm 280x112x162cm 330x112x162cm | 225x112x162cm 280x112x156cm 330x112x156cm | 245x119x174cm 290x119x174cm 340x119x174cm 440x119x174cm | 245x119x174cm 290x119x174cm 340x119x174cm 440x119x174cm | |
| Net weight | 1580 kgs 1745 kgs 1900 kgs | 1645 kgs 1810 kgs 1965 kgs | 2070 kgs 2160 kgs 2435 kgs 2805 kgs | 2195 kgs 2285 kgs 2560 kgs 2930 kgs | |
| Gross weight | 1844 kgs 2049 kgs 2229 kgs | 1910 kgs 2115 kgs 2295 kgs | 2460 kgs 2550 kgs 2840 kgs 3270 kgs | 2600 kgs 2690 kgs 2980 kgs 3410 kgs | |
| Standard Accessories | 1.Three jaw chuck 2. Thread chasing dial 3.Tool box & tool 1 set | ||||
| Special Accessories | 1. Coolant system 2.Brake 3.Driving plate 4.Living center 5.Taper turning attachment 6.Drill chuck 7.Stopper 8.QCTP 9.DRO 10.Chuck cover 11.Leadscrew cover 12.Tool post cover | ||||
| Lathe Features | Apron box construction design patent with rapid movement. Automatic lubrication system. φ105mm spindle bore. | ||||
