50L 166.7bar 6.2mm Tped ISO 9809 High Pressure Vessel Seamless Steel Gas Cylinder
| US$85.00-120.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
50L
Material
34CrMo4
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Model No.
ISO9809-1
Water Capacity
50L
Outside Diameter
229mm
Working Pressure
166.7bar
Test Pressure
250bar
Weight
63±1kgs
Cap
Common Cap or Tulip Cap or Semi-Circle Cap
Specficition
ISO/Tped
Wall Thickness
6.2mm
Height
1500mm
Bottom
Concave
Neck Ring
with
Inlet Thread
Customize
Color
Customize
Standard
ISO /Tped
Transport Package
Netting/Palllet
Specification
229-50L
Trademark
YA
Origin
Linyi Shandong
HS Code
7311009000
Production Capacity
20000PCS/Month
Product Description
1.Product description| Water Capacity | 20L-70L |
| Cylinder Weight | 33-83kg |
| Outside Diameter | 232mm |
| Service Pressure (Bar) | 166.70bar |
| Test Pressure(Bar) | 2500bar |
| Certification | TPED/ISO9809 |
| Head Protection | Tulip Cap, Common Cap |
| After-Sales Service Provided | Overseas Third-Party Support Available |
| Brand Name | YA |

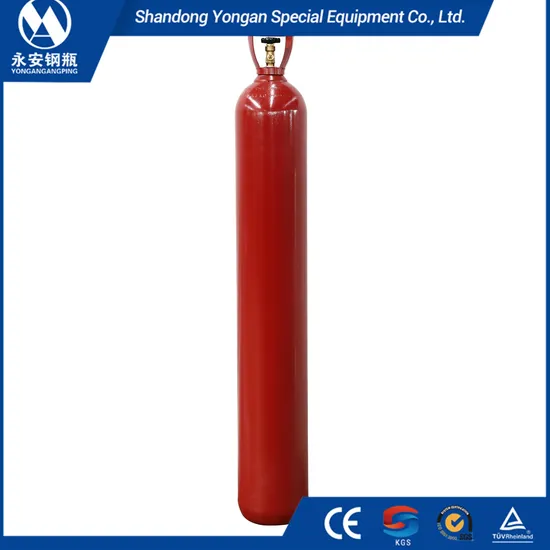

2.Product picture
3.Company Profile
| Type | Outside diameter (mm) | Water capacity (L) | Height (mm) | Weight (kg) | Service pressure (bar) | Test pressure (bar) | Design wall thickness (mm) | Material |
| WGA229-20 | 229 | 20 | 690 | 33 | 166.7 | 250 | 6.2 | 30CrMo |
| 30 | 960 | 43 | ||||||
| 40 | 1230 | 53 | ||||||
| 43.3 | 1320 | 56 | ||||||
| 48.8 | 1470 | 62 | ||||||
| 50 | 1500 | 63 | ||||||
| 70 | 2040 | 83 |
