Aspheric Grinder/Milling Machine/Milling Machine/Machine Tool/Milling Lathe/Nano Level Grinder/CNC Machine

Product Description

Product Description

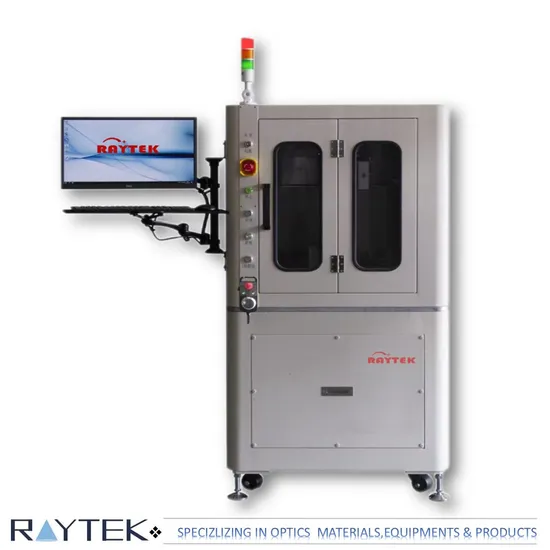

Shanghai Ruitai Optoelectronics Technology Co., Ltd. has released its latest product - the ultra precision aspherical nano grinder RAYTEK-P100. This device is designed specifically for circular aspheric molds with diameters ranging from Φ 3 to Φ 90mm, and can achieve high-precision surface polishing treatment. RAYTEK-P100, with its advanced surface automatic compensation processing technology, can efficiently polish precision molds with rough surfaces, ensuring that the processed parts achieve ideal surface smoothness and shape accuracy.

Certifications
Equipment features :
•This equipment is suitable for precision surface polishing of circular aspherical molds with diameters ranging from 3 to 90mm.
•The convenient touch screen interface and high-precision motion control system allow for direct import of mold surface data, achieving automatic compensation processing of the surface.
•High precision polishing can be performed on precision molds with rough surfaces. •Wide applicability: capable of handling various sizes and shapes of aspherical molds, meeting the needs of different industries and application scenarios.
•High efficiency: Optimized grinding mechanism and high-precision bearing design significantly improve machining efficiency and stability.
•Intelligent operation: equipped with PLC control system and touch screen operation interface, simplifying the operation process and improving production efficiency.
•Environmental protection and energy conservation: Adopting an integrated cooling and heating system with internal circulation to reduce energy consumption and pollution emissions during the production process.
Application area:
•In the field of new energy, Nano scale silicon crystal materials and lithium battery positive and negative electrode materials are used to prepare solar panels, significantly improving the performance and stability of new energy materials.
•Advanced materials field: capable of preparing various nanomaterial and nanostructures, such as nanowires, nanoparticles, Nano films, etc., to enhance the physical, chemical, and mechanical properties of materials.
•Microelectronics field: suitable for the manufacturing of high-precision microelectronic devices and integrated circuits, improving the overall performance and reliability of microelectronic equipment.
•Material surface modification: By Nano scale trimming and removal of surface defects, the optical, thermal, electrical, and mechanical properties of materials are improved to meet various precision machining needs.
Product Parameters

NO	Project	Content	Detailed specifications
1	Basic parameter	Power source	Power Supply: Single phase 220VAC Rated Power: 2.3KW Compressed air: 0.50MPa ± 5%; 10 liters per minute;
		Specification of mold kernels	Standard configuration: circular diameter ranging from 3mm to 50mm; Optional customization: 50mm -90mm
		Operation temperature	ordinary temperature
		Dimensions and weight	Size: 950 (L) × 850 (W) × 2050 (H) Weight approximately: 750KG
2	Main technical parameter	X-axis	Journey: ± 100mmRepetitive positioning accuracy: ± 1 μ m
		Y-axis	Stroke: 100mm Fine adjustment: 5mm
		Z-axis	Stroke: 100mm Repeated positioning accuracy: ± 1 μ m
		B-axis	Swing angle: ± 85 ° Repeated positioning accuracy: ± 0.001 °
		Workpiece rotate speed	Rpm (customizable speed)Speed accuracy: ± 10rpm
		Polishing shaft speed	Rpm (customizable speed)Speed accuracy: ± 10rpm
		Precision of polished surface	≤0.1μm
3	Environment requirements	Cleanliness	Below 10000 level (below 1000 level is recommended, or 100 level FFU is placed on the operating platform to ensure local cleanliness)
		Ambient humidity	30-60% But without condensation
		Ambient temperature	22ºC ± 3 ºC, but without condensation

After Sales Service
Shanghai Ruitai Photoelectric Technology Co., Ltd. is well aware of the importance of after-sales service, and therefore we provide comprehensive after-sales support and services:

•Warranty policy: Free warranty service will be provided within six months after the product is sold, and only parts fees will be charged for repairs after six months.
•Quick response: No matter what problems users encounter, we will respond quickly and provide professional solutions. Users can directly contact the local distributor or send the product back to our after-sales service department for repair.
•Professional maintenance: The company has a professional maintenance team that can efficiently and accurately solve various equipment failures and problems.
•User guidance: Provide detailed user manuals and operation instructions to ensure that users can correctly use and maintain the equipment.
•Regular Follow up: The company conducts regular follow-up visits to users to understand their equipment usage and provide necessary technical support and consulting services.
Shanghai Ruitai Photoelectric Technology Co., Ltd. always adheres to the business
philosophy of "quality first, customer first", and is committed to providing high-quality products and comprehensive after-sales service to our customers. The RAYTEK-P100 ultra precision non spherical nano grinder will be your ideal choice for achieving high-precision machining and improving product quality.

Detailed Photos
FAQ
Main Export Countries & Areas:
USA, UK, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina, Pakistan, India, Portugal, Canada, New Zealand, South Africa, UAE, Egypt, Norway, Netherland, Russia, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union or L/C
Delivery time: 7-10 days.
Quality Warranty: Shanghai Z printing offers quality warranty for our lasers products with "3R" policy. For any inferior-quality products, Z printing company is responsible for return, replacement and refund.
For specific installation and operation, please refer to the product manual or contact customer service for operation tips or videos after receiving the product. The equipment is guaranteed for one year, and artificial or abnormal damage is not covered by the warranty. If it exceeds one year, a certain fee will be charged for the relevant after-sales service. This device will continue to be optimized and improved due to various factors. At that time, please pardon us not notify separately. Thank you for your support and understanding.
