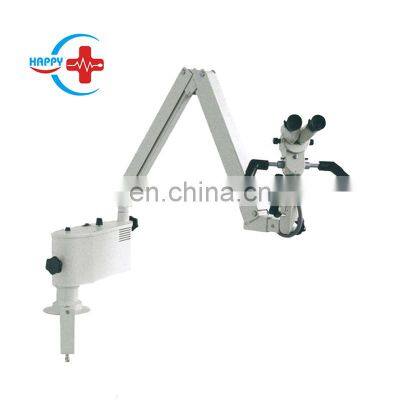

HC-I047A Wall type operating surgical microscope optical dental operating microscope

Product Description

Product Description
HC-I047A Wall type operating surgical microscope optical dental operating microscopeProduct Description Features for HC-I047A Wall type operating surgical microscope optical dental operating microscope: HC-I047A surgical microscope performance configuration table:Table of Specification for Series Operation Microscope:ItemHC-I047ABinocular observationStraightMagnification of binocular6XInterpupillary distance50mm-80mmDiopterHalogen 5DMagnification changer3-step magnification change: 0.6X,1X,1.6XFocal length of objectiveTwo objectives: F=200 & F=300mm (M45x0.75mm)Total magnification3X, 5X, 8X, 4.7X, 7.5X, 12XLinear field60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mmFine focusing range10mmFilterBuilt-in green and yellow filtersBalancing arm2-part arm with universal jointsIllumination systemCoaxial illumination with 10W LED lamp light source, brightness adjustable, illumination >30,000lxStandTable mount clampOptional accessoriesDemonstrator,Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket Table of Optical Characteristics for Operation Microscope:Focal length of objectiveF=200mmF=250mm(optional)F=300mmF=400mm(optional)Magnification on handwheel1.6X1X0.6X1.6X1X0.6X1.6X1X0.6X1.6X1X0.6XTotal magnification12X7.5X4.7X9.6X6X3.7X8X5X3X6X3.8X2.3XLinear field (mm)15.825.340.619.731.650.723.637.960.831.550.581Exit pupil diameter (mm)1.041.661.041.661.041.661.041.66Exit pupil distance (mm)15.3Resolution (LP/mm)6744.529.76035.42747.231.523.6352719.8 The surgical microscope uses fiber-optic coaxial illumination, has different working distances and magnification, is easy to operate and simple to use, and is widely used in microsurgery in ENT, ophthalmology, dental and surgical departments.Selection of surgical microscopes and recommendations for selecting objectives: About single column and double column: The main difference is high and low.Double-column: relatively high, large adjustment range, optional when the room is large enough.Single column: It is optional when the room space is small, the operator is short and the bed can be lowered. First double column.Applicable objectives: There are four focal lengths (equivalent to the working distance) of 200, 250, 300, 400 mm.For dentistry: 200 is too close for operation; 400 is too remote for operation. Choose 250 or 300 is better.General choices: 200 - neurovascular eyes; 250 - dentistry; 300 - gynecology; 400 - internal medicine surgeryFocal length magnification: Small focal length, multiples, and a small focal length. Pictures for HC-I047A Wall type operating surgical microscope optical dental operating microscope : Packaging & Shipping Company Information Clients and Projects contact Our Services FAQ1. How to place order of HC-I047A Wall type operating surgical microscope optical dental operating microscope?A: Firstly we confirm product details and then send the Proforma Invoice, You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram, after we confirm your payment then ship the product to you once finished production. 2. For HC-I047A Wall type operating surgical microscope optical dental operating microscope product,What’s the minimum order quantity (MOQ)?A: For disposable material,We have our own MOQ,For our HC-I047A Wall type operating surgical microscope optical dental operating microscope , our MOQ:1pc, 3. What is your warranty?A: For most products the warranty is for 12 months, some products we provide 18 months warranty. For HC-I047A Wall type operating surgical microscope optical dental operating microscope , we provide 12 months warranty.4. What’s your delivery time?A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For HC-I047A Wall type operating surgical microscope optical dental operating microscope, the delivery time is 10 working days.5. How to ship the product?A: The shipping way normally depand on your quantity,total CBM and weight. We have our own shipping company to provide best shipping cost and efficient way.
