Programmable Reactive Power Meter

Product Description

Chapter 1. General introduction
The 3U(3I) combined meter is used to measure and display the direct digital reading of voltage/current value in the three-phase electrical line. The UIF combined meter is used to measure and display the direct digital reading of voltage, current, and frequency values in the single-phase electrical line. One meter can finish the measuring tasks of three common meters. It can support the analog output, alarm, and RS4485 communication function by the installation of different functional modules. And it can also select the multiple functional modules at the same time to make it with the alarm, transmitting, and communication functions.
Chapter 2.Model and definition
Chapter 3.General parameters

Input specification of the voltage	AC 100V,220V,380V or 500V (external PT is necessary if more than 500V)
Input specification of current	AC 1A or (external CT is necessary if more than 5A)
Frequency of input signal	45~65Hz
Accuracy grade	class 0.5
Alarm output	relay contact output,contact capacity AC 250V/1A;DC 30V/1A,resistive load
Communication interface	RS485 serial communication, MODBUS-RTU communication protocol
Transmitting output	linearity 0.5%, load resistance: output current≤300Ω, output voltage≥1KΩ, which are electrically isolated with the input signal and the auxiliary power supply
Switch input	dry contact input

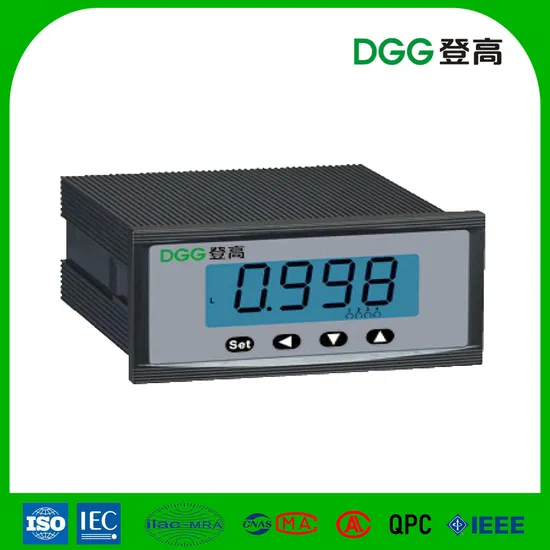

Photos of Product
