Complete Stone Crushing Plant, Stone Crusher Plant, Stone Crushing Line

Product Description

Complete Stone Crushing Plant, Stone Crusher Plant ,Stone Crushing Line
Applied crushed Materials: limestone, cobble stone, river stone, rubble stone, gravel, etc.
Raw Materials Max Feed Size : <1000 mmDischarge Size: 0-5mm / 5-20mm /20-25mm/25-40mm (according to the client's demands)

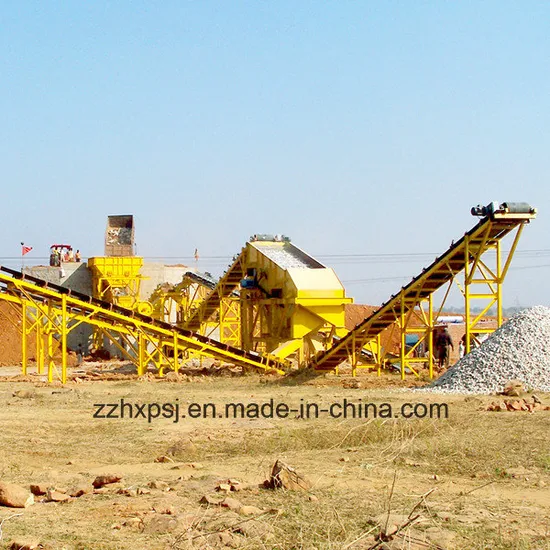

Stone crushing plant process:
The stone material is sent regularly by the vibrating feeder to the primary jaw crusher, the crushed material is sent to the secondary jaw crusher to be crushed again. The crushed material is sent by belt conveyor to vibrating screen to be separated. The material, whose size is suitable for the feed size of the sand making machine, can be sent to the sand making machine.
The unsuitable material should be sent back to the secondary jaw crusher to be crushed again. The crushed material from the sand making machine is sent back to the vibrating screen to be separated. The suitable separated sand, which is the final product, should be sent to the sand washing machine to be cleaned, and then sent by the belt conveyor.
The unsuitable separated sand should be sent back to the sand making machine to be crushed again. The producing line forms two closed cycles. The producing line can be changed according to the customers' requests.
Hengxing stone crushing plant features:
1. Professional in hard stone breaking, energy saving & environment friendly! -Limestone, Basalt, Granite,
Pebbles, River stone..
Stone Crushing Line Stone Crushing Plant with Stone Crusher
2.Stone production line high degree of automation, the entire production line in addition to starting and stopping of the equipment and routine maintenance, almost no manual operation
Stone Crushing Line Stone Crushing Plant with Stone Crusher
3. Its high production efficiency, low operating cost, large output, high-yielding, finished stones uniform particle size, grain shape is good, meet the national high-speed material requirements.

Successful cases of the stone crushing plant :
100-150t/h stone crushing plant

Item	Model	Motor (kw)
vibrating feeder	1100X4200	75
jaw crusher	600X900	75
impact crusher	1214	132
vibrating screen	1545	15
high-efficiency fine impact crusher	1000X1000	90
sand washing machine	2800	11

200t/h stone crushing plant

item	model	power(kw)
vibrating feeder	1100X4900	16
jaw crusher	750X1060	90
impact crusher	1315	180
vibrating screen	1854	18.5
high-efficiency fine impact crusher	1300X1200	160
sand washing machine	3200	15

Stone crushing plant package and shipping:
About factory :
FAQ:
For providing you the suitable stone crushing plant quotation we need to know the following information:A: 1.What is the raw material for the production line?2. What is the capacity per hour you required?3. What is the maximum input size of the raw material? 4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.
Q: What about Warranty of the products?
A: Hengxing grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely. Mini Mobile/ Stationary Soft to Hard Rock Stone Jaw Crusher with factory price 5
0-500tph Stone Crusher Equipment used for Soft or Hard ore Breaking With Factory Price
Q: The reason you choose Hengxing Equipment :
A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
