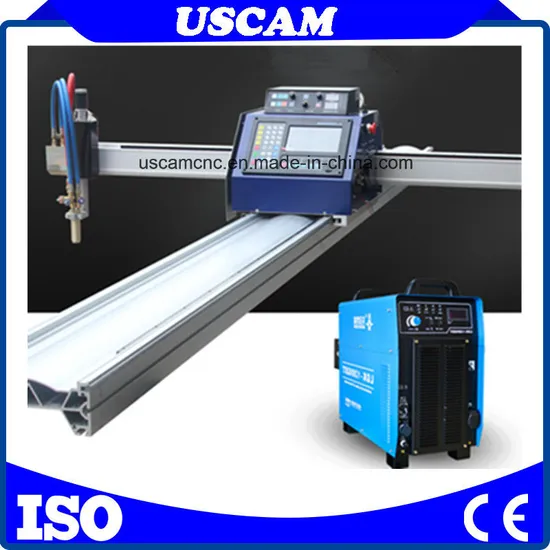

1530 Metal Steel Sheet Portable Air CNC Plasma Cutter

Product Description

1530 metal steel sheet portable air cnc plasma cutter
Features:
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
3. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.
4. Cutting speed, high accuracy and low cost.
5. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
6. Support Wentai, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
- Working area: 1300x2500mm/1500x3000mm
- 63A HUAYUAN plasma power supply
- START control system from Beijing
- Fastcam original special plasma software
- Leadshine driver and Stepper motor
- Taiwan HIWIN square rail guide
- FOB Port of loading: QINGDAO port.
- Your estimated delivery time: 7 working days after receiving the deposit

NO.	Description	Parameter
1	X,Y Working Area	1300*2500mm/1500x3000mm
2	Table Size	3070*1970mm
3	X,Y Traveling Positioning Accuracy	±0.02mm
4	X,Y repositioning Accuracy	±0.01mm
5	X,Y Structure	Taiwan HIWIN Rail and rack gear
6	Type	Portable type
7	Power Supply	Huayuan Supply from China
8	Power	63A/100A/120A/200A
9	Drive Motors	Stepper system
10	Working Voltage	AC220V/50/60Hz
11	Command Language	G code
12	Operating System	Start Control System
13	Interface	USB
14	Flash Memory	128M( U Disk)
15	X,Y Resolution	<0.01mm
16	Software Compatibility	FastCAM software
17	Running Environment	Temperature: 0ºC~45ºC Relative humidity: 30%~75%

Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,
aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
After-sales Service: 1. 12months-quality guarantythe machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period without human damage.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
6. User-friendly English manual and video CD for machine using and maintaining
7. My company English software can do all kinds of pattern recognition,software upgrading and updating free
