Laboratory Ceramic Mini Vertical Beads Mill Pulverizer with Zirconium Oxide Ball Grinding Jar

Product Description

Laboratory Ceramic Mini Vertical Beads Mill Pulverizer with Zirconium Oxide Ball Grinding Jar

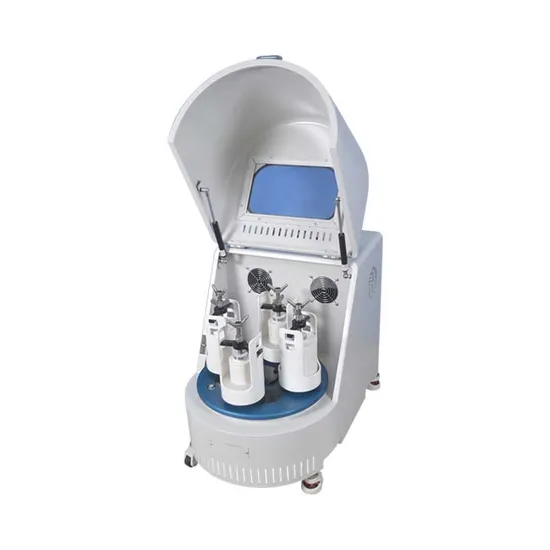

Introduction of Planetary Ball Mill:
CY-MSK-SFM-1 is a Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.
CY-MSK-SFM-1 has four ball grinding tanks installed on one turning plate. When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. (Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to customer's feedbacks, minimum granularity can be as small as 0.1 um).
Specifications of Planetary Ball Mill:

Working Voltage	208 - 240V AC (single-phase), 50/60 Hz 220V AC Power plug is not included. If you would like to operate it at 110V, you may choose a >1000W transformer
Max. Power Consumption	500W
Speed control	Digital controller by changing the frequency of three-phase AC motor
Rotary Rate	Main plate rotation: 30-350 rpm Mixing tank self-rotation: 60-700 rpm
Digital display	Digital display the speed in RPM/Hz The timer controls major platen's running time from 0.1 - 100 hours Timer control tank rotation time from clockwise to the anticlockwise direction:0.1 - 50 hours Number of the operating cycle: 0 - 100
Tank (Jar) Lock Clamps (included)	Four 320ml Nylon Jars are included 32 ZrO2 (YSZ) balls with various sizes are included (8 balls per jar). Lock Clamps are included for easy jar securing Various jars are available as optional up to 500ml capacity Four jar holders can accommodate jar size up to 107mm O.D x 112mm H O-ring can be inserted between the lid and jar for wet grinding (ID:90mm, OD:104mm)
Sieves	1 pcs 14 mesh for separating samples is included In order to mill efficiently, material particles shall be less than 14 mesh (1.12mm)
Warranty	One year limited warranty with lifetime support Consumable parts, such as Nylon jar and grinding ball, are not covered by the warranty
Production Dimensions	450mm(L) x 490mm(W) x 530mm(H)
Net Weight	220 Lb

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
