Export Africa Diesel-Powered Concrete Mixer Can Be Lifted 25 Meters High, Exported to Ghana.

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company.
2.Products Specification:
We are leading factory with almost 30 years in machinery export business, engoy an excellent reputation in circle of concrete mixer. Also, we participate in the Canton Fair every year. We sincerely invite customers who wish to have a long-term cooperation to visit our factory and have business discussion.
To give you a general idea of our products, we are enclosing our catalog for your reference to your email box after your permission. For more information about our company and products, you may also visit our web site: tobemac.en.made-in-china.com
Note: Best price according to quantity and engine option. Pls contact us for more information.

	Drum Volume	L	510
	Mixing Capacity	L	350
	Concrete Output	m³/h	20
Mailn performance	Winch/Elevator		With winch
parameters	Lifting Height	m	25
	Wheel Size		6.50-16
	Dimensions(L*W*H)	cm	230*135*275
	Weight	Kg	1700
Engine	Model		CF1100
	Type		Horizontal, Single Cylinder, Four-stroked and Water Cooled
	Rated Rotating Speed	RPM	2200
	Power	Hp	16
Wire Rope System	Diameter of Wire-rope	mm	12
Host Machine	Total Weight	kg	1700
	Overall Size (L×W×H)	mm	2300 x 1350 x 2750

Article .Features

Features 1	Mixing Drum
		Made by Q235 Wear resistant Steel Plate,The Drum Bottom thickness is 4 mm,Upper thickness is 3 mm.

Features 2	The Big Gear Ring
		Heavily Duty of Drum Gear Ring,Weight to 68KGS, Not easy to wear out, make sure the machine to have a longer Service Life.

Features 3	Winch System
		Rational Design,Power transmission by CHAIN. More Powerfully,Less Maintance, guarenteed the power transmission. The Length of Wire Rope is 50m,thickness is 12mm.Can make sure to lift the material up to 25 meters high.

Features 4	Portection Cover for Engine
		Made by Q235 Steel Plate, which thickness is 1.8 mm, make sure it can protect the Transmission System from damaged . What's more,because of the Engine was setted in the cover, the Dust can not access the engine easily, so the engine could have a longer service life.

Features 6	Engine Options
India Engine		Chinese Engine	Our machine could fit with INDIA Brand engine or CHINESE Brand engine,To a greater extent to meet the needs of different customers.

3.Product Application

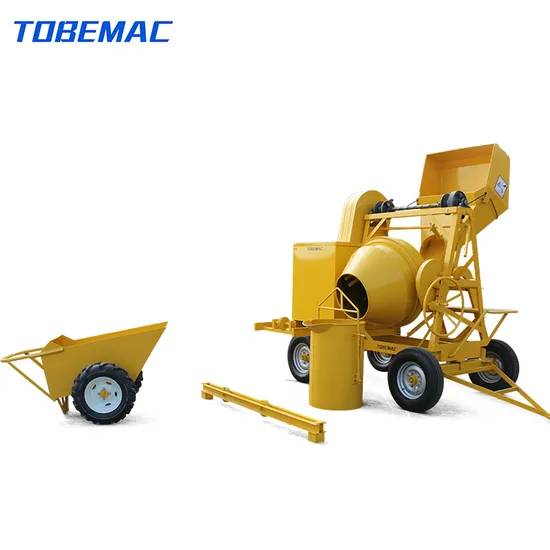

The CM350-4A Concrete Mixer with With Tilting Drum and Diesel Engine is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
The CM350-4A Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
4.Main Features
1) Big Steering Wheel for easy operation
2) Robust Chassis with 16 mm width Steel Bar
3) Many Small Holes on the Engine Cover for good ventilation
4) Spraying Plastics Treatment
5.Production Flow
6.Packaging&Delivery
7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
