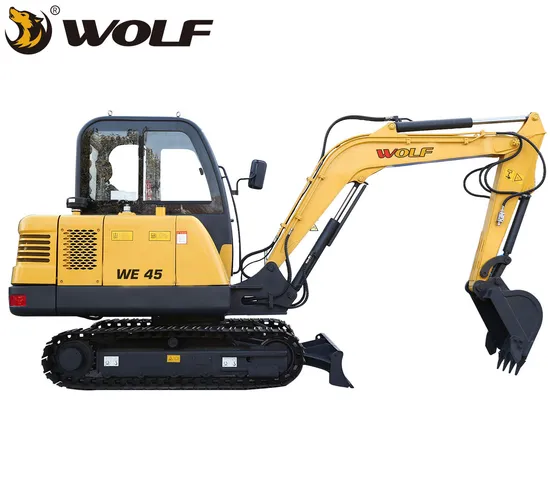

Wolf 4 Ton Construction Hydraulic Digger We45 Crawler Excavator Made in China
| US$28,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WE45
Type
Crawler Excavator
Usage
Special Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Optional
Hammer, Quick Hitch etc
Engine
Yanmar4tnv88
Power
33.7kw
Max Digging Depth
3700mm
Max Digging Height
5050mm
Max Dump Height
3500mm
Overall Size
6070X1630X2128mm
Colour
Yellow
Rated Load
0.2m3
Transport Package
1 Set in One 40hq
Specification
CE/ISO/EPA
Trademark
WOLF brand
Origin
Qingzhou, China
HS Code
84295100
Production Capacity
10000 Sets/Year
Packaging & Delivery
Package Size
495.00cm * 160.00cm * 220.00cm
Package Gross Weight
4200.000kg
Product Description
Product DescriptionStandard configuration: With Yanmar 4TNV88 engine,33.7KW,
4-cylinder, KYB Japan pump and
motor,Italian valve ,pilot control lever,
Air-cool, standard backhoe bucket
Excavator has been widely used in road construction, bridge construction, urban construction, airport port and water conservancy construction. So excavators have both bulldozers, loaders, cranes and other functions, can replace these mechanical work. WE45 excavator can help you do these works.
Learn more from the detail information:
Product Parameters
Specification:
| Excavator model | WE45 | |
| Operate weight (kg) | 4200 | |
| Bucket capacity (m3) | 0.14-0.18 | |
| Engine model | Yanmar 4TNV88 | |
| Engine power (kw) | 33.7 | |
| Swing speed (rpm) | 2200 | |
| Ground pressure (KPA) | 33 | |
| Travel speed (km/h) | 4.4/2.7 | |
| Tracking force (kn) | 34.1 | |
| Grade ability (°) | 30 | |
Main dimensions | Superstructure width (mm) | 1500 |
| Undercarriage width (mm) | 1630 | |
| Boom Length (mm) | 2650 | |
| Arm Length(mm) | 1600 | |
| Overall Height with cabinet(mm) | 2455 | |
| Clearance under counter weight(mm) | 585 | |
| Tumbler Distance(mm) | 1710 | |
| Rear swing radius (mm) | 1600 | |
| Overall length for transportation(mm) | 5560 | |
| Ground clearance (mm) | 350 | |
Working range | Max.digging radius (mm) | 5720 |
| Max.digging depth (mm) | 3700 | |
| Max.digging height (mm) | 5050 | |
| Max.dumping height (mm) | 3500 | |
| Max.dozer cutting depth (mm) | 380 | |
| Max.dozer lifting high (mm) | 255 | |
Packaging & Shipping
How to ship:
Using 40ft container to load, 40ft container can load 2 sets WE45 excavator.
After-sale service
The warranty is 1 year, starting from receiving the machine. Within the warranty, any part breaks because of quality issue, except man-made damage, after confirmation, new part will be delivered to you for free, including freight.
