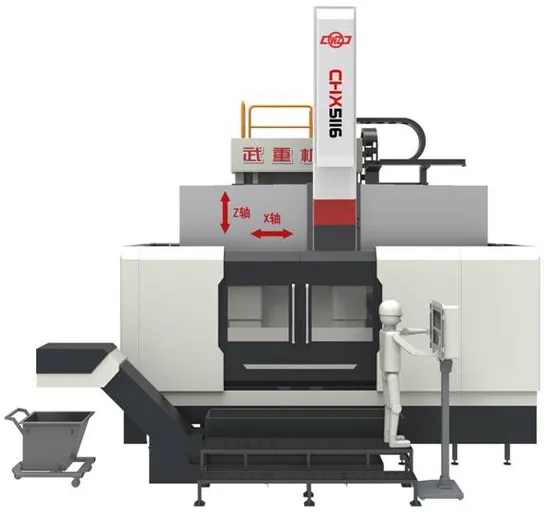

Ckx5125 CNC Single Column Vertical Milling and Turning Center

Product Description

Product Description
APPLICATION
Suitable for materials such as various casting irons, steel and alloy, non-ferrous metal, non-metal material, etc. It can carry out turning to inner/exterior cylinder, inner/exterior cone, plane, slot/groove, thread and various rotary curved shaped parts. With function head adopted, the machine can carry out milling/drilling, tec. Processes such as turning/milling/drilling/tapping can be realized by once set-up. Table can carry out constant speed cutting and arbitrary indexing.
Function attachments as per requirement: disc type ATC, in-machine tool setting device, job measuring probe, electric spindle grinding head, etc.
The main performance characteristics:
Main fundamental parts adopt high quality casting iron, with thermal symmetrical structure to improve thermal stability. Table adopts high accuracy double row roller bearing in radial for centering; large size ball thrust bearing is adopted in axial for supporting; Table indexing adopts high accuracy dual lead worm for gap elimination. Main drive adopts 2-step mechanic speed change planet gear transmission structure, driven by wide field mag net DC motor or AC spindle motor. Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. Milling spindle is housed in toolhead; AC spindle motor drive; 2-shift gearbox speed change. Machine adopts full closed enclosure protection; crossrail guide way adopts stainless steel protection cover. Product Parameters

Item	Unit	Model
		CKX5116	CHX5116	CKX5125	CHX5125
Max turning diameter	mm	Φ1600		Φ2500
Max turning height	mm	1600		2000
Table diameter	mm	Φ1400		Φ2250
Table loading capacity	t	8		16
Highest table turning speed	r/min	315		200
Highest table milling speed	r/min	3.2		2
Max table torque	kN.m	20		32
Ram section size	mm	250×250		250×250
Max ram travel	mm	1500		1500
Milling spindle power	kW	13.5/25		13.5/25
Milling spindle max torque	N.m	400/750		400/750
Milling spindle highest speed up to	r/min	2000/2500		2000/2500
Turning main motor power	kW	55		55
