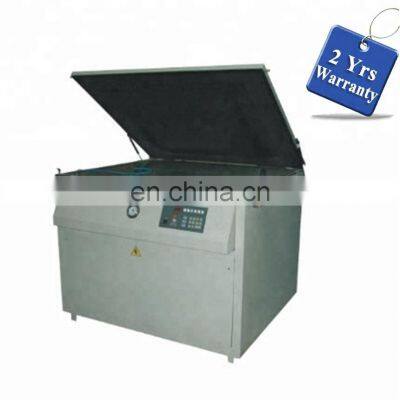

UTE1200 UV vacuum screen printing frame developing machine positive film exposure unit

Product Description

Product Description
UTE1200 UV vacuum screen printing frame developing machine positive film exposure unit
Product Description
Features:
1, Automatic lights shutting off time can be pre-set by the operators
2, Heavy-duty construction but easy to operate
3, High-powered halogen light source offers faster but more excellent exposure result
4, Built-in light reflector maximizes the image resolution
5, The unique cabinet design and tabletop operation interface enable its unit to fit through a standard doorway
6, Gas shock system let the blanket frame popping up/down being a pleasure
7, LED timer and air pressure gauge outer display system allows for easy clear information readout
8, All emulsion materials are available: direct, capillary and indirect
9, Top vacuum environment delivers a pure intimate contact between blanket and screen.
Parameters:

Model	UTE-900	UTE-1000	UTE-1200
Frame Size	700×1000mm	800×1000mm	1000×1300mm
Power	2.0kw	2.0kw	3.0kw
Dimension	90×120×98/cm	100×120×98/cm	120×150×98/cm
weight	120kg	130kg	180kg

Detailed Images
Our Services
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1. What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Wooden Case Loading and Transport
Steel Case Loading and Transport
