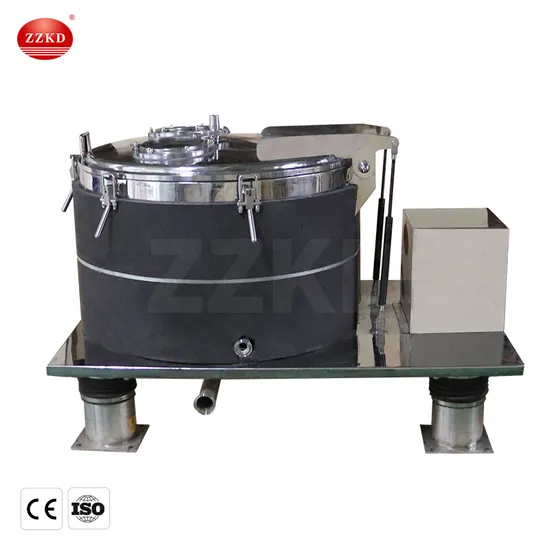

Lab Ethanol Herb Extraction Centrifugal Extractor Separation Equipment Hemp Oil Extraction Industrial Basket Filter Centrifuge Separator

Product Description

Lab Ethanol Herb Extraction Centrifugal Extractor Separation Equipment Hemp Oil Extraction Industrial Basket Filter Centrifuge Separator Product Description Basket centrifuges are often called centrifugal filters or clarifiers. They have a perforated wall and cylindrical tubular rotor. In many cases the outer wall of a basket centrifuge consists of a fine mesh screen or a series of screens with the finer mesh screens supported by the heavier coarse screen, which in turn is supported by the bowl. The liquid passes through the screen and the particles that are too large to pass through the screen are deposited. Main purpose of ZZKD brand centrifugal extraction equipment is to extract from dried hemp and filter out the organic matter and plant debris that are insoluble in ethanol. Centrifuge is the most convenient ethanol extraction solution in extracting industrial hemp. The material is quickly extracted by full contact with ethanol and high speed rotation.
Cash Payment is Available in Los Angeles!
Lab Equipment in USA Warehouse, Canada Warehouse, Spain Warehouse!
No Customs Clearance, Pick up by yourself!

Model	PPTD-10	PPTD-30	PPTD-50	PPTD-135	PPTD-200	PPTD-400	PPTD-500
Drum capacity (L)	14	40	85	185	295	450	510
Jacket volume (L)	22	30	43	75	110	150	155
Loading limit (lbs)	15	60	120	270	500	940	1060
Plant material loading limit (lbs)	4	16	30	70	100	180	240
Speed (R/ min)	2700	1900	1500	1200	1000	960	960
Separation factor (g)	1225	910	755	645	560	620	645
Motor (kW)	1.1	1.5	3	5.5	7.5	15	18.5
Frequency converter (kW)	1.5	2.2	4	7.5	11	18.5	22
Net weight (kg)	280	400	750	1700	2350	3100	3350
Drum diameter (mm)	300	450	600	800	1000	1200	1250

Product Features Solid-Liquid Semi-Automatic Machine Centrifuge. The motor drives the basket to rotate at high speed through the belt, and under the control of pre-written program, the material to be separated is fed into the basket through the feed system. After the material is filtered through the filtration medium (filter cloth/screen) under the action of centrifugal force, the liquid phase discharges out of the centrifuge through the liquid pipeline, and the solid phase is retained in the basket. A material detection device is used to detect material filling position in a real-time manner, and when the solid cake deposited in the basket reaches the specified holding capacity of the centrifuge, feeding stops. Then wash and dry the solid cake. After the solid cake meets the requirements for knock-out, the centrifuge reduces the scraping rate, under the hydraulic (pneumatic) control, the scraper device removes the solid cake, and then the cake is discharged at the bottom outlet of the centrifuge.
1. Inverter start-up, smooth starting, adjustable relative centrifugal force.
2. Discharge cake by lifting out filter cloth is highly efficient with low labor intensity; No damage to the particles; Wide range of applications.
3. Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
4. Overall welding structure between the base and the case ensures high carrying strength.
5. Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
6. Liquid-damping vibration isolators, simplify the routine maintenance.
7. Big hinged cover, feed pipe, wash pipe, observation glass and light.
8. Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
9. Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system(optional)is for anti-explosion applied to poisonous, flammable and explosive environment.
10. Equipped with hydraulic suspension arms with external fully-stainless steel surface (optional), which is easy for discharging and complies with the sanitation requirements.
