Iot Sensor

Product Description

Look for distributors
Working Diagram:
System Features:
1. All channels synchronous collection
2. One sensor collects both vibration and temperature
3. Alarm SMS/EMAIL for both vibration and temperature data
4. Intelligent alarm: minimal sampling value(RMS) interval 5min, good coverage of machine operation
5. Wireless work mode, no need wiring work, saving wiring cost,
Easy to Install
6. Multiple communication options
7. Convenient installation

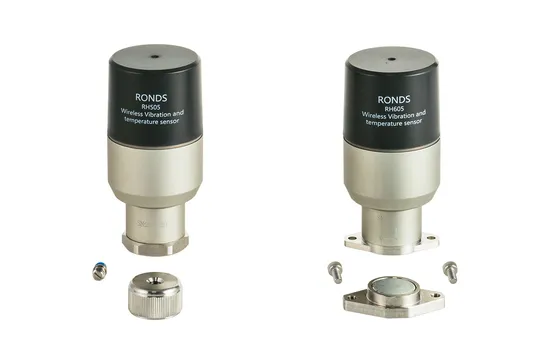

RONDS IWMS has no signal cable during installation, 2 years battery life of wireless accelerometer, secure installation of accelerometer with magnet base and M6 bolt. Satisfy the requirement of explosion proof degree on site
8. Four in one sensor--vibration and temperature integrated sensor
Integrated design, synchronous collection of acceleration, velocity and displacement and temperature
Technical Parameters

Triaxial RH605 Wireless Vibration and Temperature Integrated Sensor
Vibration Measurement Parameter
Vibration Range	Piezoelectric:±50 g(peak value) MEMS:±16 g (peak value)
Linearity	1%
Frequency Range (±3dB)	Piezoelectric:2Hz-20000Hz(±3 dB) MEMS:2-1000Hz(±3 dB)
Measuring definition acquisition	Piezoelectric direction time waveform length:1K,2K,4K,8K,16K,32K,64K,128K MEMS direction time waveform length:1K,2K,4K,8K,16K
Analysis frequency	Piezoelectric:500Hz,1000Hz,2000Hz,5000Hz,10000Hz,20000Hz MEMS:500Hz,1000Hz
Long time waveform acquisition	Piezoelectric direction time waveform length:256K,512K,1M,2M Analysis frequency:5000HZ,10000HZ,20000HZ
Temperature Measurement Parameter
Temperature Range	-40~125 ºC
Temperature Accuracy	±1 ºC (-40ºC~125ºC)
Electrical and Structure Parameter
Power Supply	Lithium-thionyl chloride battery
Communication Method	2.4GHz IEEE 802.15.4
Dimension	46.5 mm × 93.6 mm(diameter × height)
Weight	210 g
Environment Parameter
Working Temperature	-40~70 ºC
IP grade	IP68

One Axial RH505 Wireless Vibration and Temperature Integrated Sensor
Vibration Measurement Parameter
Vibration Range	±50 g
Linearity	1%
Frequency Range (±3dB)	2~20kHz
Sampling rate	1280Hz~51.2kHz
Analysis frequency	500Hz,1kHz,2kHz,5kHz,10kHz,20kHz
Waveform Length	1K,2K,4K,8K,16K,32K,64K,128K
Lines	400,800,1600,3200,6400,12800,25600,51200
Long time waveform	Maximal length 2M
Temperature Measurement Parameter
Temperature Range	-40~125 ºC
Temperature Accuracy	±1 ºC (-40ºC~125ºC)
Electrical and Structure Parameter
Power Supply	Lithium - thionyl chloride battery, 3.6V, 3.3Ah
Communication Method	2.4GHz IEEE 802.15.4
Dimension	46 mm × 94 mm (Diameter * Height)
Weight	188 g
Environment Parameter
Working Temperature	-40~70 ºC
IP grade	IP68

RH560 Wireless data collector
Input and output
Communication with Sensor	2.4GHz IEEE 802.15.4
Indicator LED	Total 3 pieces (working, communication, abnormal status)
Number of RH505 connecting	30~60 units according to real application condition
Electrical and Structure Parameter
Power Supply	220V AC
Dimension	203 mm × 82 mm × 260 mm (Length * Width * Height)
Weight	3 kg
Mounting	Hanging or fixation through holder
Environmental Parameter
Working Temperature	-40~70 °C
IP grade	IP66

MOS3000 Software
Site Installation
Application Industrial Fields
Application Industrial Fields
Ronds Global Market Performance
