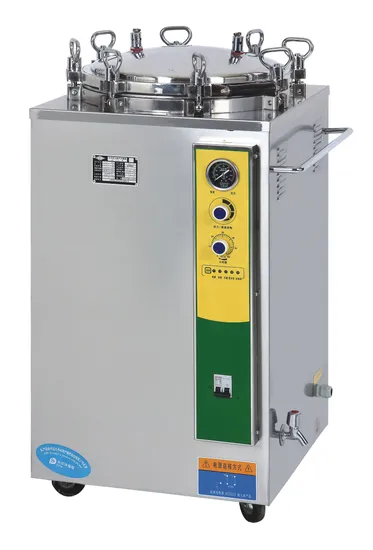

Medical Vertical Pressure Steam Sterilizer (100L) (PTS-B100L)

Product Description

Item No. PTS-B35L(automatic) PTS-B50L(automatic) PTS-B75L(automatic) PTS-B100L(automatic)
Valid volume 35L(φ 318× 450)mm 50L(φ 340× 550)mm 75L(φ 400× 600)mm 100L(φ 440× 650)mm
Working pressure 0.22MPA
Working temperature 134ºC
Max working pressure 0.23 MPA
Heat average ≤ ± 1ºC
Timer 0-99min or 0-99hour
Adjustment of temperature 105-134ºC
Power 2.5Kw/AC220V. 50Hz 3Kw /AC220V. 50Hz 4.5KW AC220V. 50Hz
Overall dimension 450× 450× 750(mm) 500× 530× 980(mm) 550× 560× 960(mm) 600× 580× 1100(mm)
Transport dimension 550× 550× 880(mm) 590× 590× 1120(mm) 650× 620× 1120(mm) 670× 650× 1200(mm)
N/G. W 45Kg/ 55Kg 50Kg/70Kg 69Kg/90Kg 76Kg/100Kg

Item No.	PTS-B35L(automatic)	PTS-B50L(automatic)	PTS-B75L(automatic)	PTS-B100L(automatic)
Valid volume	35L(φ318×450)mm	50L(φ340×550)mm	75L(φ400×600)mm	100L(φ440×650)mm
working pressure	0.22MPa
Working temperature	134ºC
Max working pressure	0.23 Mpa
Heat average	≤±1ºC
Timer	0-99min or 0-99hour
Adjustment of temperature	105-134ºC
Power	2.5Kw/AC220V.50Hz	3Kw /AC220V.50Hz	4.5KW AC220V.50Hz
Overall dimension	450×450×750(mm)	500×530×980(mm)	550×560×960(mm)	600×580×1100(mm)
Transport dimension	550×550×880(mm)	590×590×1120(mm)	650×620×1120(mm)	670×650×1200(mm)
N/G.W	45Kg/ 55Kg	50Kg/70Kg	69Kg/90Kg	76Kg/100Kg
