Zqdf Series - Steam Solenoid Valve - Threaded Connection - Stainless Steel - DN15-DN65- Voltage Optional - Customizable
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
ZQDF
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Stainless Steel
Pressure
High Pressure
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC220V or DC24V/According to Customer Requirements
Usage
Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
GB/According to Customer Requirements
Application
Industrial Usage, Water Industrial Usage, Household Usage
Sealing
PTFE
Customizable
1. Waterproof 2. Explosion Proof 3. Vacuum Use
Transport Package
Based on Customer Needs
Specification
DN15-DN65
Trademark
ChiSin
Origin
China
HS Code
848120109
Production Capacity
2000pieces/Months
Product Description

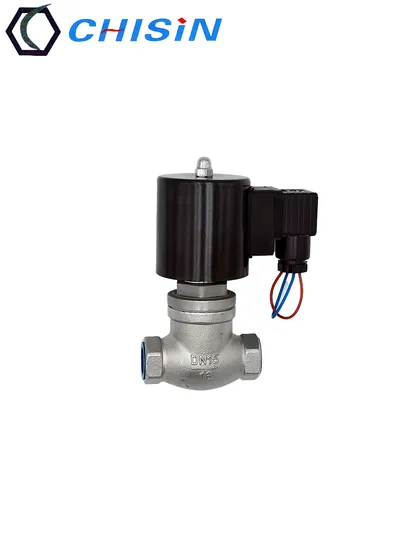

ZQDF series steam solenoid valve - comes with a one-year warrantyFeatures: Steam available and can be started at zero pressure
Sealing: The valve adopts a piston type, usually sealed with PTFE, and sealed with nitrile rubber in a vacuum environment.
Optional: normally open, explosion-proof, waterproof, vacuum type
Media: liquid, gas, steam, oil
Working temperature: optional ≤ 180 ºC, optional ≤ 220 ºC,
Work pressure: 1.6MPA
Working pressure difference: 0-0.8MPA
| Model | connection method | Length | High |
| ZQDF-15 | G 1/2'' | 70 | 140 |
| ZQDF-20 | G 3/4'' | 80 | 145 |
| ZQDF-25 | G 1'' | 90 | 150 |
| ZQDF-32 | G 1 1/4'' | 110 | 200 |
| ZQDF-40 | G 1 1/2'' | 120 | 210 |
| ZQDF-50 | G 2'' | 130 | 220 |
| ZQDF-65 | G 2 1/2'' | 145 | 250 |
