PLC Integrated Bridge Cutting Machine for Processing Granite and Marble Rotate 0° ~90°

Product Description

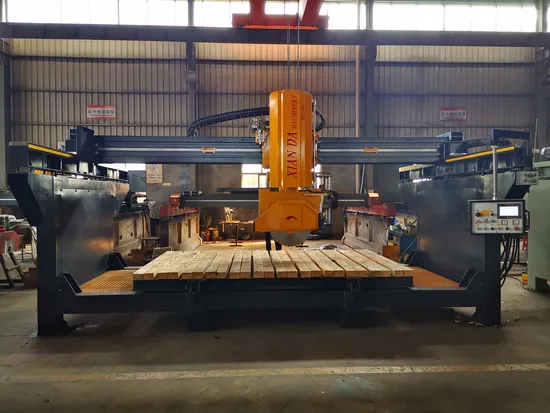

PLC Integrated Bridge Cutting Machine for Processing Marble Granite ZDBL-450/600
It adopts PLC system and human-machine intelligent operation interface. The main engine uses doub le hydraulic lifting combined with chrome guide sleeve, which is small clear nace and wearable and beautiful. The design of multi-layer seal in the guide sleeve is waterproff, dustproof and leakproof. The sidebeam adopts high precision linear slide track. The left -right foward-backward movement are all use encoder to control. with high precision megnetic railing ruler to detect, it can adjust the speed according to stone materials, theus the accuracy is higher. It uses the dedicated motor of stone machinery. the cutting head can rotate 0° and 90°, enhancing the processing speed. The blade can tilt 0°and 45°, enlarging the rangr of application. It is an integrated machine with compacted structure, easy operation and efficient cutting precision, which is the first chpice for processing and chamfering for high value granite and marble.
Technical Parameter

Parameter	Unit	ZDBL-450	ZDBL-600
Blade Diameter	mm	φ300-φ450	φ350-φ600
Max Processing Size	mm	3200*2000*100	3200*2000*170
Worktable Size	mm	3200*2000	3200*2000
Worktable Tilting Degree	°	0-85°	0-85°
Worktable Rotation Degree	°	0,90°	0,90°
Blade Tilting (Optional)	°	0,45° (optional)	0,45°(optional)
Power of Main Motor	kw	15	15
Total Power	kw	20.5	24
Water Consumption	m³/h	3	3
Dimension (L*W*H)	mm	5850*3500*2650	5850*3500*2950
Weight	kg	6500	6750

More Product

Middle Block Cutting Machine

Planar Stone Carving Machine

Monoblock Bridge Cutting Machine

Block Cutting Machine

Block Dressing Machine

Integrated Bridge Cutting Machine

Factory Overviews
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep"Creat the highest value of your stone"as purpose,your visiting andcontacting is always welcomed.
Certifications
Exhibition
Our Team
Our Service
* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training. FAQ Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes,that we are the stone machinery factory for over 30 years.
