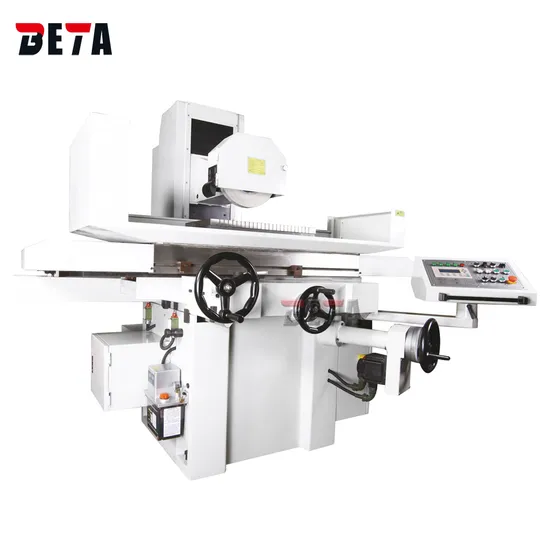

Hydraulic High Accuracy Metal Grind Automatic Surface Grinding Machine
Basic Info.
Model NO.
SGA3063AHD
Type
Surface Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
PLC Control
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Hydraulic High Accuracy Automatic Surface Grinding
Model
Sga3063ahd
Magnetic Chuck Table Size
300X600mm
Max. Loading Capacity
270kgs
Grinding Type
Surface Grinding Machine
Chuck
Magnetic Chuck Table
Delivery Time
2 Month
Warranty Time
12 Months
Voltage
380V
Cross Moving
Servo Motor
Longitudinal Moving
Hydraulic
Vertical Travel
Servo Motor
Control
PLC Automatic Control Grinding
Grinding Wheel Size
350X40X127mm
OEM
Available
Transport Package
Wooden Case
Specification
305x635mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
235.00cm * 222.00cm * 221.00cm
Package Gross Weight
2800.000kg
Product Description
Hydraulic high accuracy metal grind automatic surface grinding machine SGA3063AHD| Model | Unit | SGA3063AH | SGA3063AHR | SGA3063AHD |
| Table size | mm | 305*635 | 305*635 | 305*635 |
| Magnetic chuck size | mm | 300*600 | 300*600 | 300*600 |
| Max.distance from spindle center to table | mm | 580 | 580 | 580 |
| Table cross travel | mm | 340 | 340 | 340 |
| Table longitudinal travel | mm | 765 | 765 | 765 |
| Max.loading capacity (include chuck) | kg | 270 | 270 | 270 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Cross motion intermittent feed rate | mm/t | 0.1~8 | 0.1~8 | 0.1~8 |
| Cross motion rapid speed | mm/min | 990 | 990 | 990 |
| Cross motion feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 |
| vertical motion auto down feed rate | mm/t | - | - | 0.005~0.5 |
| vertical motion rapid down speed | mm/min | - | 650 | 480 |
| vertical motion feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 |
| spindle rotating speed | r/min | 1450 (50HZ) / 1750 (60HZ) | ||
| grind wheel size | mm | 350*40*127 | ||
| spindle motor power | kw | 4 | ||
| floor space (L*W*H) | mm | 2900*2200*1900 | ||
| Gross weight | kg | 2800 | ||
| Packing size (L*W*H) | mm | 2350*2220*2210 | ||
Standard accessories:
Operating manual Working lamp Balancing arbor Standard grinding wheel Magnetic chuck Built-in magnetic chuck controller Coolant tank Wheel flange and extractor Wheel dresser stand Leveling wedge and screw
Optional accessories:
Balancing stand Magnetic separator Paper filter Oil tank guard Dust exhaust Parallel wheel dresser 2-Axis digital readout Extra wheel flange
