Cfjg-Sk-50 Automatic Spiral Coreboard Fireworks Paper Tube Making Machine

Product Description

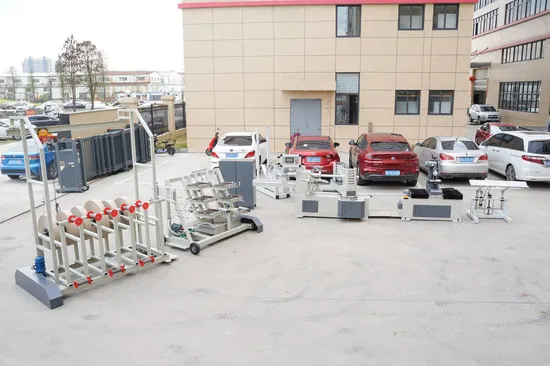

CFJG-SK-50 Servo Controlled Paper Tube Making Machine

Technical Parameter
Paper Layer	10 Layers
Inner Diameter	20-100mm
Wall Thickness	1-5mm
Winding Speed	1-25 meters/min
Speed Regulation	by Inverter
Winding Heads	Two heads single belt
Cutting blade	Single high-speed steel blade
Cutting Way	Pneumatic
Gluing Way	Double sides
Online Cutting Length	1000-5000mm
Working air pressure	0.6Mpa
Power Supply	380V/3Phase/50Hz
Operator	1-2 persons
Measurement & Weight
Measurement	2700*1600*1800mm
Working Space	7500*5000mm
Weight	2100kgs

Main Configurations
Paper Reel Stand	10 Layers Cross Type
Gluing Unit	10 Layers Spraying Type
Inner Paper Stand	1 Set
Discharging Shelf	1 Set
Mandrel Shaft	2 Pieces
Belt	2 Pieces
Extra Blades	5 Pieces
Tool	1 Set

2022 Latest Model
Double-heads Single Belt Spiral Winding
Single Knife Online Cutting System; Servo Motor Controlled;
Cutting Length 500-5000mm ((speed will be low when cutting length < 1000mm))
Equipped with 10 layers integral type paper reel stand have hoist paper lifting device
Equipped with 10 layers double sides spraying type gluing unit
Inner paper stand 1 set
Paper Tube Collector * 1 set
Finished tubes
Packing & Delivery
Company Profile
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has 15+ years' experience on paper tube & core machines manufacturing and 7+ years on paper straw machines manufacturing.
Main products are below:
-- Paper straws making machine
-- Paper tube & core making machine
-- Paper tube & core cutting machine
-- Jumbo paper slitting rewinding machine
-- Related machines
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan,USA, Mexico, Colombia, Ecuador etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
