Good price Precision MY4080 High quality hydraulic surface grinding machine for sale
Basic Info.
Model NO.
MY4080
Processing Object
Crank Shaft
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Good price Precision MY4080 High quality hydraulic
Size of work table
800*400mm
Max. travel of table
900*480mm
Table T slot (slot number X slot width)
3*14mm
The grinding wheel size
355*40*12mm
Distance spindle center line to working
600mm
Spindle motor
4kw
Cooling motor
125W
The process surface of the base level of
300:0.005mm
Net weight
2800kg
Gross weight
3200kg
Transport Package
Plywood Case
Specification
1730*1290*1940mm
Trademark
Luzhong
Origin
China
HS Code
8460909000
Production Capacity
100
Product Description
Good price Precision MY4080 High quality hydraulic surface grinding machine for saleProduct Description
Product Parameters
Product main technical parameters:
| Specifications | Units | MY4080 | ||||||
| workbench | Worktable size (L * W) | mm | 800×400 | |||||
| Max. travel of table | mm | 900×480 | ||||||
| Table T slot (slot number x slot width) | mm | 3×14 | ||||||
| Grinding head | The grinding wheel size (o. d * w * i. d.) | mm | Φ355×40×Φ127 | |||||
| Distance spindle center line to working table | mm | 600 | ||||||
| Grinding wheel speed | 50HZ | r/min | 1450 | |||||
| 60HZ | r/min | 1680 | ||||||
| The amount of feed | Table longitudinal (left and right)0 speed | m/min | 3-25 | |||||
| Transverse (front and rear) feed handwheel feed | Continuous (stepless) | mm/min | 240 | |||||
| Intermittent (stepless) | mm/times | 0-8 | ||||||
| Handwheel per turn | mm | 5.0 | ||||||
| Handwheel per lattice | mm | 0.02 | ||||||
| The vertical (up and down) feed handwheel feed | Handwheel per turn | mm | 0.8(1.0) | |||||
| Handwheel per lattice | mm | 0.01 | ||||||
| Grinding head up and down is fast lifting speed (approximate value) | mm/min | 1000 | ||||||
| Motor power | Spindle motor | Kw*P | 4*4 | |||||
| Cooling motor | W | 125 | ||||||
| Elevator motor | W | 180 | ||||||
| Hydraulic motor | KW*P | 2.2*6 | ||||||
| working accuracy | The process surface of the base level of the parallel degree | mm | 300:0.005 | |||||
| Surface roughness | μm | Ra0.4 | ||||||
| Machine weight | Net weight | kg | 2800 | |||||
| Gross weight | kg | 3200 | ||||||
| External size (L * w * h) | mm | 2550×1650×2200 | ||||||

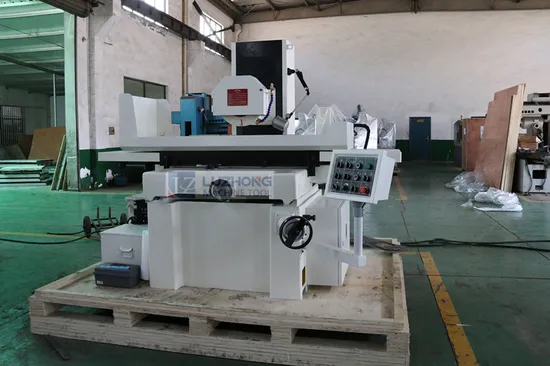

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
