80W 100W 120W 150W 180W CNC Wood/Acrylic/Plastic/Glass/Fabric/Textile/Leather 1390 CO2 Laser Engravers Cutters Engraving Cutting Machines Price

Product Description

Perfect Laser-60w 80w 100w 120w 150w 180w CNC Wood/Arcylic/Plastic/Glass/Fabric/Textile/Leather 1390 Co2 Laser Engravers Cutters Engraving Cutting Machines Price
(Model:PEDK-13090)

Product Description

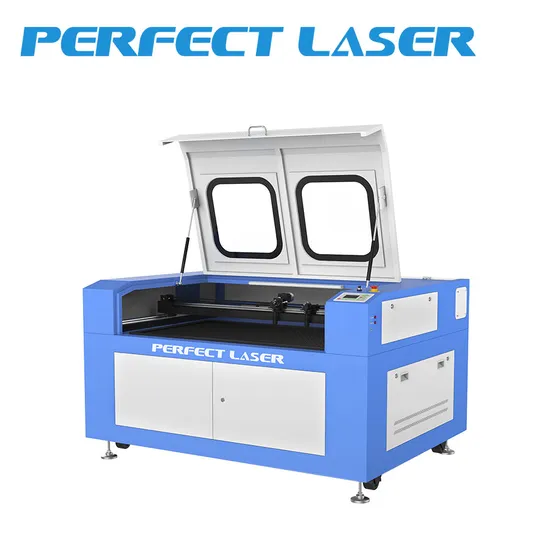

Perfect Laser is a world leading manufacturers of Co2 laser cutters. PEDK-13090 laser engraving machine is the most hot-selling model accepted by our customers.Co2 laser cutters has large 1300mm by 900mm working area, compact nesting, convenient storage materials.

Application
Perfect Laser - PEDK Models CO2 Laser Engraving Machine with different working area/laser power, which can engrave/cut on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of nonmetal materials with complex shapes. Our Laser Engraving Machine is widely applicable for advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Product Features
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device. 3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.

4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

5. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
11. Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Technical Data

Model	PEDK-13090
Working Area	1300×900mm
Laser Power	60W / 80W / 100W / 120W / 150W
Laser Type	Hermetic and Detached Co2 Laser Tube
Engraving Speed	1-60000mm/min
Cutting Speed	1-10000mm/min
Repeat Location Accuracy	± 0.0125mm
Laser Power Controlling	1-100% Manual Adjustment and Software Controlling
Voltage	220V(±10%) 50Hz
Cooling Mode	Water Cooling and Protect System
Cutting Platform	Professional Thickening Strip or Honeycomb Work Table
Controlling Mode	CNC Professional Control System
Support Graphics Formats	BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
Power Controlling Mode	Laser Energy Combining Movement Control System
Control Software	Original Perfect Laser Engraving & Cutting Software

Recommended by seller
Remark:
1. Payment terms: T/T, L/C, West Union
2. Delivery lead time: 7-10 working days after receipt of the advance payment.
3. Delivery method: by sea or air shipment.
4. Packing: compound wooden cases with exporting standard
Training&Service:
1. 12months Gurantee Period;
2. Free Online Consulting Service
3. Free Operation Tranining in our factory;
4. Detailed Operational Manual &Traning CD in English Version
5. Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact China Perfect Laser! 1.The exact material you want to cut? (Acrylic, Wood, Leather, Paper, , , , etc)
2.The cutting depth on above materials? (Like, 3 mm, 5 mm, 7 mm, 15 mm...)
3.The working area you demand? (max dimension of material, width*length, 400*300mm, 1300*900 mm, 1300*2500mm...)To benefi
