6140 CNC Lathe Machine with Hydraulic Pressure for Automatic Metal Cutting

Product Description

Product Description
This series of Precision CNC Lathe Machines with Hydraulic Pressure for Automatic Metal Cutting boasts a sleek, compact design that is aesthetically pleasing, complemented by a robust spindle capable of generating substantial torque. Excelling in rigidity, it ensures stability and reliability in operations, while maintaining exceptional accuracy over time. Featuring high positional precision and seamless chip evacuation, it is ideally suited for high-speed, high-precision machining tasks, delivering unparalleled performance. The machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, and end face. It also proficiently handles single and multiple threads in metric, inch, and other standards.

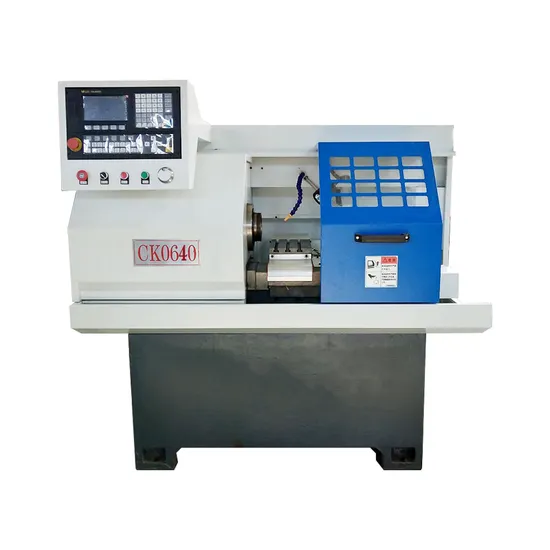

Detailed Photos
Product Parameters

SPECIFICATIONS	UNIT	CK6140
Max swingoverbed	mm	∅400
Max swingover cross slide	mm	∅180
Max processing length	mm	750/1000/1500
X/Zaxi;tra-1	mm	x:240 z:750/1000/1500
Spindle speed	rpm	L:70-560 H:200-1600
Spindle nose		C6
Spindle bore	mm	∅52
Spindle taper		MT6
Spindle motor	kw	5.5
Chuck size	mm	∅200
Ball screw dia and pitch		2505/4006
X/Zaxis feed motor torque	N.m	5/7.5
X/Zaxis rapid traverse	m/min	X:6 Z:8
X/Zaxis repeatabilty	mm	±0.005
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ral.6
Tailstock sleeve dia	mm	∅65
Quill traverse	mm	140
Quill taper		MT4
System		GSK
Tool postform		Electric six station
Voltage	v	3 PHASE 380V 50HZ
Machine dimension (L*W*H)	mm	2300*1500*1700
Gross weight	kg	1900

Product Description:
1. The machine features a sheet metal design that is both aesthetically pleasing and convenient for operation.
2. The bed frame is crafted from high-quality resin sand, with rails subjected to super audio quenching for excellent wear resistance.
3. Rail laminating process significantly enhances wear resistance and prolongs the equipment's lifespan.
4. Precision rolling screw vice transmission with three-point positioning and double support ensures high accuracy.
5. The centralized lubrication unit ensures comprehensive lubrication of all moving parts, thereby extending the equipment's lifespan.
6. Offers a variety of clamping options for versatile functionality.
Fit Range
1. Capable of turning cylinders, tapers, arcs, externalities, and cutting through bores and reams. It can also create various screw threads.
2. Suitable for automotive and mobile parts, valves, electric tools, hardware meters, and other applications requiring precision surface finishes.
Packaging & Shipping
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. Wayne machinery is a manufacture of cnc lathe cutting machine and laser cutting machine ,In fact,we do export for more than 15 years , our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.
Q: How long is your delivery time?
A: Generally it is 15-30 days ,it is according to different machine model and different configuration and order quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Also we would like to do LC at sight.
Q: Where is your factory located ? How can I visit there ?
A: We are located in Liaocheng City. Which is only 1 hours' away from Jinan by train.
Also you can fly to JINAN Airport, it is only 1 hour and we will pick up you.
