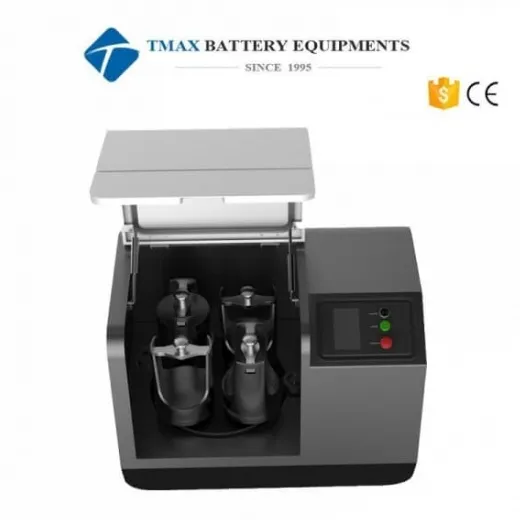

TMAXCN Brand Planetary Ball Mill Machine with Automatic LED Lighting

Product Description

Planetary Ball Mill Machine with Automatic LED Lighting
Comminution according to the Planetary Principle
The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls. To achieve this, the grinding jar, containing the material to be ground and grinding balls, rotates around its own axis on a main disk whilst rotating rapidly in the opposite direction. At a certain speed, the centrifugal force causes the ground sample material and grinding balls to separate from the inner wall of the grinding jar. The grinding balls then cross the jar at high speed and further grind the sample material by impact against the opposite jar wall. In addition, impact between the balls themselves on the sample material adds to the size reduction process.
SPECIFICATIONS

Optimal for material type:	medium-hard, soft, brittle, tough, moist
Item No.:	TMAX-FCS-01
Max. feed size:	10mm
Final fineness:	<100nm
Min. sample quantity:	10ml
Max. sample quantity:	450ml
Rotational speed (disk):	50-400r/min
Rotational speed (jars):	100-800r/min
Transmission ratio:	1:-2
Transmission standard:	CE
Grinding modes:	16 modes programmable
Grinding tools:	grinding jars and grinding balls
Bi-direction grinding:	yes
Continuously grinding	00:01:00 - 99:59:59
Paused interval:	00:01:00 - 99:59:59
Emergency stop:	yes
Power off memory:	yes
Overload protection	Yes
Milling chamber lighting:	automatic LED lighting, 110V/220V, 18W
Number of milling samples:	4 simultaneously
Materials of the grinding jars:	SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC
Number of working stations:	4
Ball mill type:	vertical
Compatible grinding jars:	100ml / 250ml
Materials of milling balls:	SS, agate, zirconia, alumina, nylon, PTFE It Can Be Customized
Grinding ball diameter:	3/5/10/15/20mm
Compatibal ball weight	100-500g
Grinding process:	dry /wet grinding
Vacuum grinding:	yes
Low temperature grinding:	yes
Grinding in inert gas:	yes
Temperature detection:	yes ( special accessories)
Pressure detection:	yes ( special accessories)
Electrical details:	100-120V/200-240V AC ,50-60Hz, 750W
Plug types:	GB/EU/US/UK standard It Can Be Customized
Net weight:	80kg
Dimensions (W x D x H):	750*500*500mm
Noise level:	60dB
IP rank:	IP60
Product standard:	CE
Patent:	design patent/ noise improve patent
Accessories:	LED lighting, user manual, warranty card

Material Data for Grinding Jars/Balls

Material	Main component	Density (g/cm3)	Abrasion resistance	Use for material to be ground
Agate	SiO2	2.65	Good	Soft to medium-hard samples
Sintered corundum	Al2O3	3.8	Fairly good	Medium-hard, fibrous samples
Silicon nitride	Si3N4	3.25	Excellent	Abrasive samples, iron-free milling
Zirconium oxide	ZrO2	5.7	Very good	Fibrous, abrasive samples
