Hsg High Quality Fully Automatic Fiber Laser Tube Cutting Machine 3kw 6kw 12kw CNC Laser Tube Cutting Machine Price

Product Description

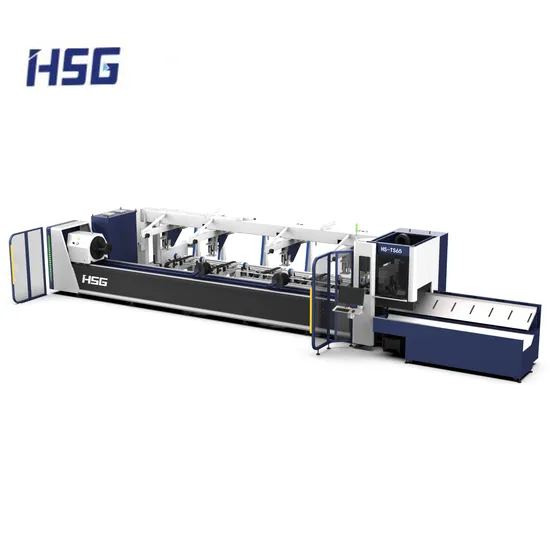

Fully Automatic Fiber Laser Tube Cutting Machine Hsg Laser Tube Cutting Robot
Digital Chucks Tube Laser Cutting Machine 1500-4000W
Cut Φ273mm Round Tube / Cut 8000mm Tube
Autofocus Cutting Head / Safety Light Curtain
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
Cut Conventional Tubes, Profiles and Special-shaped Tubes
TS can not only cut conventional tubes like round, square and rectangular tubes, and profiles like channel, angle and H-shaped steels, but also cut special-shaped tubes easily like triangular, concave, L and C-shaped tubes, etc.
Application
Applicable materials: Stainless steel, carbon steel, aluminum, brass, copper, galvanized plate, cold-rolled sheets and more.
Applicable materials: Square, circular, rectangular, oval, and special shapes such as a D shape and hexagon tube.
Application industry: This tube laser cutter is used for external processing of metal sheets, kitchenware, furniture, lighting, gym equipment, automobile manufacturing and more.
Product Description
Introduction
With an automatic typesetting function, the TS65 fully automatic fiber laser tube cutting machine can make arbitrary and intricate curvilinear figure without limits on pattern complicities.
The TS65 fully automatic laser tube cutter carries out the efficient cutting and punching of the metal square tubes, circular tubes and other tubes with various shapes. The cutting speed of this machine reaches up to 120m/min and its maximum accelerated speed can reach 1.2g.
< Double Digital Chucks >
The chucks are outfitted with pressure feedback system to adjust cutting pressure based on tube size and thickness. They are also featured by auto recognition of different tubes and real-time warning with no or less manual intervention.
* Closed-loop control * Detect real-life state of clamping claws
* Access to tube data easily * Self-adaptive adjustment of clamping force
< Double Digital Chucks>
The chucks are outfitted with pressure feedback system to adjust cutting pressure based on tube size and thickness. They are also featured by auto recognition of different tubes and real-time warning with no or less manual intervention.
* Closed-loop control * Detect real-life state of clamping claws * Access to tube data easily
* Self-adaptive adjustment of clamping force
< Space Leapfrog, Flying Cutting >
The technology helps to minimize the moving path of cutting head by omitting repeated lift and fall, therefore, cutting speed is improved beyond doubt.
---Complete Safety Measures---
Japanese Takagi Tube Nest (TTN) Software
It is re-developed based on Solidworks and can carry out parts design, programming and auto nesting for open and closed graphics.
* Generate cutting trace automatically/by hands, intuitive analog simulation
* Built-in tube library, direct imports of assembly for programming, nest according to tube length and priority
* Reserve data interface to dock with other ERP/MES system
Our Advantages
1-Eye-catching Dynamic Performance

Thanks to the imported high-torque servo motor, TS65 II can run at 120r/min rotating speed, 1.2G acceleration and reach full throttle in the blink of an eye.

2-HSG-X9000 Bus CNC System
21.5-inch touch screen with concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of low failure rate
Auxiliary functions incl. tube error detection, welds check
Rich tube cutting library
* Bus refers to data transmission mode via on-site bus control system.
3-Integrated Machine Bed
With high annealing, the machine bed will be unlikely to deform and last for a longer time. Its concave support frame can help to prevent tubes swing and any possible collision between tubes and chucks.
4-Professional Unloading Device
Unloading height can be adjusted by users to satisfy unloading demands of different kinds of tubes.
Labor-saving Configurations
* Standard Tube Automatic Loading Device (Optional)
Tube to be cut is conveyed to check-waiting area for length measuring and cut sequencing. Support frame is used for supporting tubes to ensure cutting stability and precision.
* Unloading Device (Default)
Unloading height is manually adjusted when unloading different types of tubes. Additionally follow-up unloading device is also optional.
Specification
Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.
Technical Parameter

Technical Parameter	TS65	TS65 II	TS80
Power	1500-4000W	1500-4000W	1500-4000W
X-/Y-axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X-/Y-axis Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm
No-load Speed	120m/min	120m/min	120m/min
Chuck Speed	120r/min	120r/min	120r/min
Acceleration	1.2G	1.2G	1.2G
Tube Size	Φ12-273mm, £12*12-200*200mm	Φ12-273mm, £12*12-200*200mm	Φ12-273mm, £12*12-200*200mm
Tube Length	6500mm	6500mm	8000mm
Weight of Single Tube	200kg	200kg	200kg
Overall Dimensions (L*W*H), with Loading Racks	12500*4700*2600mm	12400*5300*2500mm	14000*4700*2600mm

Certifications


Visit & Exhibition

Packaging & Shipping
1-Our high-standard package include aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, in order to satisfy ocean shipping criteria.
2-We will ensure they can be delivered to customers ASAP. without damage.
3-We also support a variety of transportation methods.
